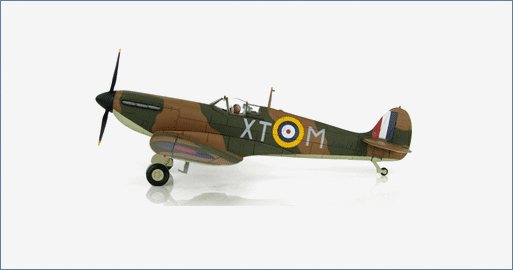

Spitfire Mk.I X4277/XT-M, Flg Off Richard Hillary, No. 603 Sqn., Hornchurch
HA7814
General Background
The Spitfire Mk.1 first became operational in July 1938. At the beginning of WWII 9 RAF squadrons were equipped with the Mk.1’s. By June 1940 the Mk.1 was being replaced by the faster long-range Mk.II but not before the Mk.I had bore the brunt of the Battle of Britain. The Mk.I also flew protective cover over the evacuation of Dunkirk. The Mk.1A had 8 machine guns instead 4, a bulged canopy, a 3-blade propeller, self-sealing fuel tanks, armored windscreen and armor plating in front of and behind the pilot.
The Aircraft
Supermarine Spitfire Mk. 1a X4277 XT-M arrived with the 603 Squadron (City of Edindurgh) on August 30th 1940. On August 27, 1940 603 Squadron moved to Hornchurch and on August 29, 1940 Hillary scored his first victory but his aircraft was badly damaged and crash landed. Assigned the new Spitfire Mk. 1 X4277 XT-M Richard Hillary scored 4 more victories. The 5th victory came on September 3, 1940 but he was once again shot down and badly burned. He returned to flying by piloting a Blenheim but died when the aircraft crashed during training.
Specifications :
Basic Information :
Role: Interceptor Fighter
Mk.1A Produced: 1,536
Crew: one
Performance:
Engine: 1 x Rolls-Royce Merlin III, liquid-cooled, V12
HP @ Altitudes – 1,030 hp @ 16,250 ft (4,953 m)
880 HP @ take-off
Speed:
Maximum @ 20,000 ft (6,100 m): 353 mph (568 kph)
Cruising:

210 mph (338 kph)

RoC (Rate of Climb):
Initial:

2,530 ft/min (771 m/min)

Time to 20,000 ft (6,096 m):

9 minutes 25 seconds

Service Ceiling:

31,900 ft (9,723 m)

Normal Range:

395 miles (637 km)

Endurance:

1.78 hrs

Weight:
Empty: 5,040 lb (2,286 kg)
Full: 6,150 lb (2,789 kg)
Dimensions:
Length: 29 ft 11 ins. (9.12 m)
Height to tip of propeller: 11 ft 5 ins (3.48 m)
Wingspan: 36 ft 10 ins. (11.23 m)
Armament: 8 x 0.303 in (7.7 mm) Browning machine guns, 300 rounds/gun
