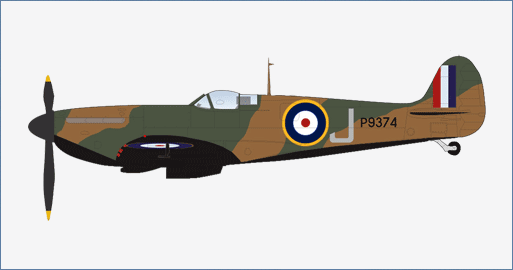

Air Power Series>1:48 die-cast display model>Spitfire>HA7817

General Background

The Spitfire Mk.1 first became operational in July 1938. At the beginning of WWII 9 RAF squadrons were equipped with the Mk.1’s. By June 1940 the Mk.1 was being replaced by the faster long-range Mk.II but not before the Mk.I had bore the brunt of the Battle of Britain. The Mk.I also flew protective cover over the evacuation of Dunkirk. The Mk.1A had 8 machine guns instead 4, a bulged canopy, a 3-blade propeller, self-sealing fuel tanks, armored windscreen and armor plating in front of and behind the pilot.

Specifications :

Basic Information :
Role:	Interceptor Fighter
Mk.1A Produced:	1,536
Crew:	one
Performance:
Engine:	1 x Rolls-Royce Merlin III, liquid-cooled, V12
	HP @ Altitudes – 1,030 hp @ 16,250 ft (4,953 m)
	880 HP @ take-off
Speed:
Maximum @ 20,000 ft (6,100 m):	353 mph (568 kph)
Cruising:	210 mph (338 kph)
RoC (Rate of Climb):
Initial:	2,530 ft/min (771 m/min)
Time to 20,000 ft (6,096 m):	9 minutes 25 seconds
Service Ceiling:	31,900 ft (9,723 m)
Normal Range:	395 miles (637 km)
Endurance:	1.78 hrs
Weight:
Empty:	5,040 lb (2,286 kg)
Full:	6,150 lb (2,789 kg)
Dimensions:
Length:	29 ft 11 ins. (9.12 m)
Height to tip of propeller:	11 ft 5 ins (3.48 m)
Wingspan:	36 ft 10 ins. (11.23 m)
Armament:	8 x 0.303 in (7.7 mm) Browning machine guns, 300 rounds/gun
