Air Power Series>1:48 die-cast display model>Spitfire>HA8313

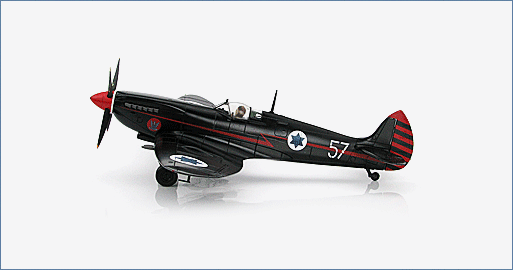

Spitfire MK.IXe 205/57, 105 Sqn., Ramat David AB, June 1955
HA8313
General Background
The Mk. IX replaced the Mk. V in June 1942 and on September 12, 1942 a Mk. IX brought down a Ju-86R flying at 43,000 feet. Another major achievement of the Mk. IX took place on October 5, 1944 when 401 Squadron became the first allied aircraft to shoot down an Me-262 jet. Even with the arrival of the Griffon powered Mk. XIV the Mk. IX continued in service until the end of WWII. There were 5,665 Mk. IX Spitfires and its variants produced.
The Aircraft
Ezer Weizman joined the RAF in 1943 serving in India as a pilot. He became a pilot for the Haganah flying in the Arab-Israeli War of 1948. With the establishment of the State of Israel he served as Chief of Operations on the General Staff, Commander of Ramat David Air Base and Commander of the Israeli Air Force from 1958 to 1966 retiring in 1969. In 1977 he became Defense Minister and eventually President of Israel. His favorite aircraft was Black #57 Spitfire which he used over many years.
Specifications :
Number built : 5,665 all Mk. IX variants
Crew : 1 X pilot
Dimensions :
Length: 31 ft. 3.5 in.
Wingspan:
Standard (F) 36 ft. 10 in.
Clipped (LF) 32 ft. 2 in.
Height: 11 ft. 9 in.
Wing Area: (F) 242 sq. ft. or (LF) 231 sq. ft.
Weight:
Empty: 5,610 lbs. (2,545 kg)
Maximum Takeoff: 7,500 lbs. (3,402 kg)
Performance:
Engine: 1 X V-12 Rolls-Royce Merlin 61 @ 1,515 hp or
1 X V-12 Rolls-Royce Merlin 63 @ 1,712 hp
Maximum Speed: 408 mph (657 kph) @ 25,000 ft.
Service Ceiling: 4,000 ft.
Range w/o drop tank: 434 miles (698 km)
Armament: 2 X Hispano 20mm cannons
plus either 4 X .303 machine guns or
2 X .50 machine guns
1,000 lbs of bombs (500 centerline, 250 each wing)
