Air Power Series>1:48 die-cast display model>BF-109>HA8719
BF 109E-7 'Jabo' 7./ZG1. Ribia, 1942
General Background
The first German mass produced 109 fighter was the Bf-109E that has been mistakenly referred
to as the Me-109. The Bf is the designator for the Bayerische Flugzeugwerke (BFW) (Bavarian
Aircraft Works) that produced the original aircraft. In 1938 Messerschmitt took over BFW but
throughout WWII German handbooks and documents referred to the aircraft as the Bf-109. By the
end of 1939 the Bf-109E (Emil) had replaced all other 109 variants and equipped 13 Gruppens
with 40 aircraft each. The Bf-109 was the main single-engine aircraft until the Fw-190 came along.
The Aircraft

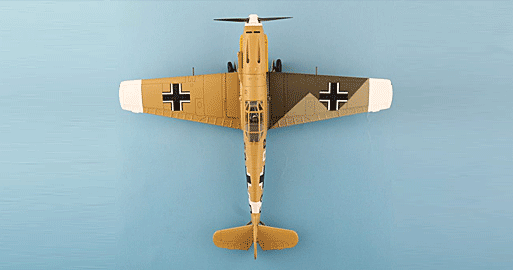

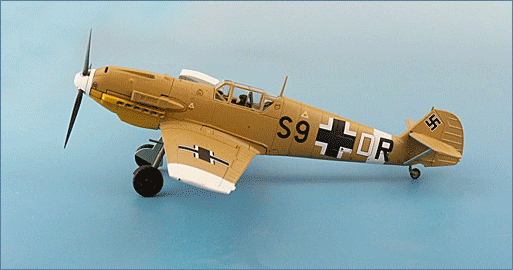

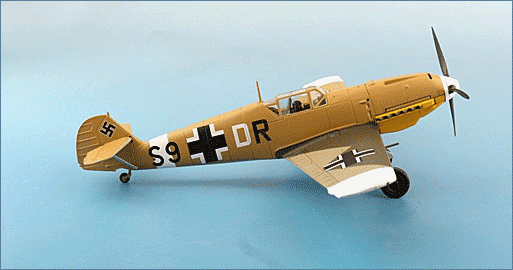

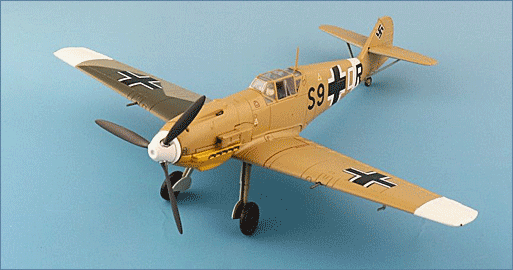

In August 1942 7./ZG 1 was re-deployed from Russia to Egypt to assist General Rommel after his first attempt to capture El Alamein failed. Upon their arrival each aircraft was given a quick new sand colored paint scheme. For some unknown reason the right wing of Bf-109E S9+DR was left in the original green color, perhaps they ran out of paint, time or the wing had been replaced. Later S9+DR was shot down during a strafing run on Fuka, Egypt. In October 1943 7./ZG 1 became 4./ ZG 26.
Specifications :
| Role: | Fighter/Interceptor |
| Weight: | Empty – 2,025 kg |
| Empty With Fuel – 2,328 kg | |
| Maximum Take-Off – 2,610 kg | |
| Performance: | Powerplant – 1 X Daimler-Benz DB-601A 12-Cylinder Inline |
| Maximum Power – 924 hp Upgraded 1,070 hp | |
| Speed Maximum | Stock – 545 km/h @ 5,000 m |
| Upgraded – 594 km/h @ 5.000 m | |
| Rate of Climb | Stock – 12.5 m/sec |
| Upgraded – 25.1 m/sec | |
| Range – 412 miles @ 62.5% power @ 16,000 ft | |
| Initial Climb Rate – 3,100 ft/min | |
| Service ceiling – 36,000 ft | |
| Armament: | Guns Wing Mounted – 2 X 20 mm MGFF Cannons W/60 RPG = 120 Total
Guns Nose Mounted – 2 X 7.92 mm MG 17 Machine Guns W/1,000 RPG = 2,000 Total |
| Bombs | 4 X 50 kg SC50JA
1 X 250 kg SC250JA |
