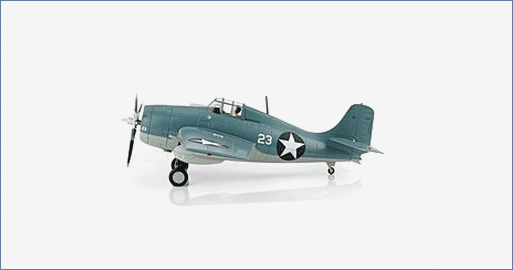

Grumman F4F-4 Wildcat "Battle of Midway" White 23, Lt. Cdr John Thach, VF-3, USS Yorktown, 4-6 June 1942
HA8902
General Background
Early in the Pacific War in WWII the Grumman F4F Wildcat was the best fighter aircraft the U.S. had but was out performed by the Japanese Zero. The Wildcat’s folding wings allowed for a greater number of aircraft that could be carried but added extra weight and reduced the aircraft performance. New features such as self-sealing fuel tanks, heavy armor made up for the Wildcat’s lesser performance. By the end of WWII the F4F had flown approximately 15,500 sorties with a kill ratio of 6.9 victories to 1.
The Aircraft
John Thach devised a maneuver, the Thach Weave, so Wildcats could compensate for the Zero’ s high speed and turn rate. Using half power aircraft would weave back and forth across each others path to protect each other. On June 4th at the Battle of Midway John Thach led six VF-3 F4F’s from the USS Yorktown to escort Douglas Devastators to attack the Japanese carrier fleet. They were met by twenty Japanese fighters and using the Thach Weave they down four Zeros with Thach claiming three of them. Thach retired as an Admiral with six air victories.
Specifications :
Total Aircraft Manufactured: 7,860
British Name: Martlet
Role: American Carrier-based Fighter
Crew: 1 pilot
Performance
Powerplant: 1 X Pratt & Whitney R-1830-86 Double-Row Radial Engine, 1,200 hp (900 kW)
Maximum Speed: 320 mph (290 kn / 515 km/h)
Service Ceiling: 34,000 ft (10,363 m)
Rate of Climb: 2,200 ft/min (11.17 m/s) Normal Power
Range: 830 miles (721 nmi / 1,337 km)
Dimensions
Length: 28 ft 9 in (8.8 m)
Wingspan: 38 ft (11.6 m)
Height: 9 ft 2.5 in (2.8 m)
Weights:
Empty: 5,895 lb (2,674 kg)
Loaded: 7,975 lb (3,617 kg)
Maximum Takeoff: 8,762 lb (3,974 kg)
Armament:
Guns: 6 X .050 in (12.7 mm) AN/M2 Browning Machine Guns
