General Background

The Mikoyan-Gurevich Mig-21 is the world most widely used supersonic fighter which has been used by over 30 countries and 56 air forces. It is the most produced aircraft since World War II with an estimation of over 10,000 in the Soviet Union alone.

The Mig-21 has a top speed of Mach 2 and has proven to be an effective and easy to maintain aircraft in many conflicts. It first achieved renown in the Vietnam War where it posed itself a challenging adversary for more technological advanced aircrafts like the F-105 and F-4 Phantom. The Mig-21 is certainly one of the most famous aircrafts in the world for all times.

The Aircraft

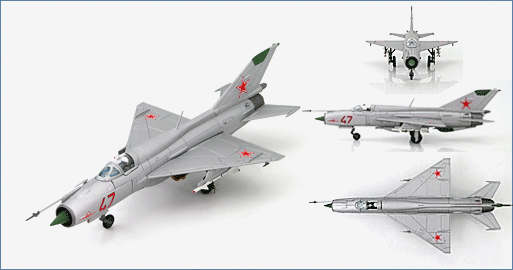

MiG-21PFM #47 was built as c/n 940MS13. Quite often “Red 47” is mistaken for NVA 473 which has a c/n of 7006 0468 plus “Red 47” cockpit opens sideways while 473 opens to the front. On the starboard side below the cockpit is written “Fiery Nightmare”. When “Red 47” was finished its days with the Soviet Air Force it became the gate guard at Kluczewo AB, Poland which closed in 1992 and “Red 47” eventually made its way to the "National Military Museum" (N.M.M.) (formerly Militaire Luchtvaart Museum), Buren, Netherlands.

Specifications :

Power Plant:	One 41.55kN (9,340lb st) or 64.73kN (14,550lb st) with afterburner Tumansky R-13-300 turbojet
Wingspan:	7.15m (23ft 5 1/2in)
Length:	15.76m (51ft 8 1/2in) - incl pitot boom
Max T-O weight:	9,400kg (20,725lb)
Max speed:	Mach 2.1 (2,230km/h - 1,385mph) above 11,000m (36,000ft)
	Mach 1.06 (1,300km/h - 807mph) at low level
Range:	1,100km (683 miles) - internal fuel only
	1,800km (1,118 miles) - with three external drop tanks, one under fuselage, one under each wing
Armament:	One 23mm twin-barrel GSh-23 cannon with 200 rounds in belly pack
	Various air-to-air and air-to-ground stores carried on four under wing pylons including:
	K-13A "Atoll" or "Advanced Atoll" a-a missiles,
	UV-16-57 rocket packs,
	S-24 a-s rockets,
	250kg and 500kg bombs
	Eventually Sidewinder missiles
