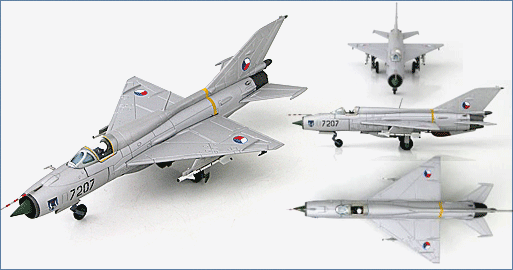

MIG-21PFM 7207, Zatec AB, Czechoslovak AF, 1990s
HA0186
General Background
The Mikoyan-Gurevich Mig-21 is the world most widely used supersonic fighter which has been used by over 30 countries and 56 air forces. It is the most produced aircraft since World War II with an estimation of over 10,000 in the Soviet Union alone.

The Mig-21 has a top speed of Mach 2 and has proven to be an effective and easy to maintain aircraft in many conflicts. It first achieved renown in the Vietnam War where it posed itself a challenging adversary for more technological advanced aircrafts like the F-105 and F-4 Phantom. The Mig-21 is certainly one of the most famous aircrafts in the world for all times.
The Aircraft
MiG-21PFM No. 7207 c/n 94A7207 was completed in July 1968 and delivered to the Czechoslovak Air Force on May, 1968. From 1987 – 1991 the aircraft was Bort 7207 with the 11 SLP (11. stihaci letecky pluk – 11th Fighter Air Regiment) 3.letka (3rd Squadron) stationed at Zatec AFB, Czechoslovakia. In 1993 former Czechoslovakia was divided into two separate countries, the Czech Republic and Slovakia. That same year 7207 was transferred to the Slovak AF and in 1994 put into storage at Sliac, AB and was later scrapped.
Specifications :
Power Plant: One 41.55kN (9,340lb st) or 64.73kN (14,550lb st) with afterburner Tumansky R-13-300 turbojet
Wingspan: 7.15m (23ft 5 1/2in)
Length: 15.76m (51ft 8 1/2in) - incl pitot boom
Max T-O weight: 9,400kg (20,725lb)
Max speed: Mach 2.1 (2,230km/h - 1,385mph) above 11,000m (36,000ft)
Mach 1.06 (1,300km/h - 807mph) at low level
Range: 1,100km (683 miles) - internal fuel only
1,800km (1,118 miles) - with three external drop tanks, one under fuselage, one under each wing
Armament: One 23mm twin-barrel GSh-23 cannon with 200 rounds in belly pack
Various air-to-air and air-to-ground stores carried on four under wing pylons including:
K-13A "Atoll" or "Advanced Atoll" a-a missiles,
UV-16-57 rocket packs,

S-24 a-s rockets,

250kg and 500kg bombs

Eventually Sidewinder missiles
