Air Power Series>1:72 die-cast display model>F-4>HA1913

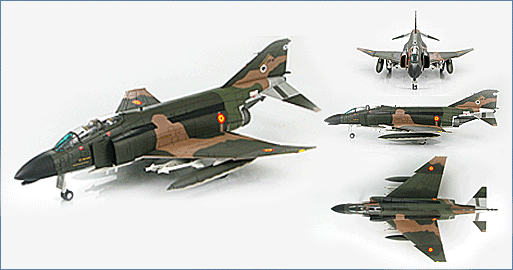

F-4C Phantom II Spanish Air Force, 1970s "C.12-40"
General Background
The F-4 Phantom II first entered US Military service in 1960. It was designed as a fleet defense fighter for the US Navy but by 1963 it was adopted as the US Air Force primary fighter-bomber.
Despite the size and weight of this Cold War icon the F-4 broke 15 world records and continued to hold five of them until 1975.
Produced from 1960 to 1981 there were 5,195 Phantom IIs manufactured. Eleven countries other than the USA had the Phantom II in their inventory.
Produced from 1960 to 1981 there were 5,195 Phantom IIs manufactured. Eleven countries other than the USA had the Phantom II in their inventory.
The Aircraft
The first Spanish contact with the Phantom was through a USAF based
wing at Torrejon AB. During the 1971 shuffing of UAF Phantom assets in
Europe the Spanish Air Force, the Ejercito del Aire recived the first
of a total of 36 F-4C Phantoms. In 1978, a further four examples were
provided along with four RF-4C. The F-4C was replaced by the F-18A/B
by April 1979, some continuing until late 1990 in non-operational roles.
Specifications :
| Dimensions | |
| Length: | 17.7m |
| Height: | 4.7m |
| Wingspan: | 11.6m |
| Wingarea: | 49.2 sq m |
| No. of Engines: | 2 |
| Powerplant : | General Electric J79-GE-10 (A/B 17,900Lb/8,119Kg) |
| Performance |
|
| Range: | 2,222 km |
| Cruise Speed: | 908 km/h |
| Max Speed: | 2,299 km/h |
| Climb: | 12,572 m/min |
| Ceiling: | 16,672 m |
