Air Power Series>1:72 die-cast display model>F-4>HA1988

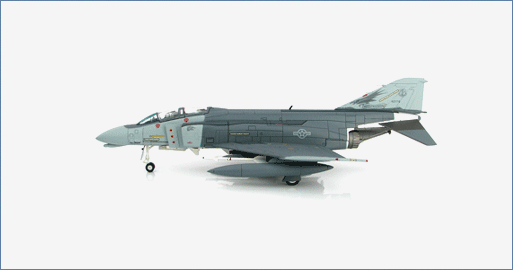

McDonnell Douglas F-4C Phantom II 64-0776, 142nd FIG, Portland, Oregon ANG, June 1989
General Background
The F-4 Phantom II first entered US Military service in 1960. It was designed as a fleet defense fighter for the US Navy but by 1963 it was adopted as the US Air Force primary fighter-bomber.
Despite the size and weight of this Cold War icon the F-4 broke 15 world records and continued to hold five of them until 1975.
Produced from 1960 to 1981 there were 5,195 Phantom IIs manufactured. Eleven countries other than the USA had the Phantom II in their inventory.
Produced from 1960 to 1981 there were 5,195 Phantom IIs manufactured. Eleven countries other than the USA had the Phantom II in their inventory.
The Aircraft
McDonnell Douglas F-4C Phantom II 64-0776 was delivered to the 33rd TFW on July 30, 1965.
On March 4, 1966 the aircraft transferred to the 389th TFS/366th TFW in South Vietnam where it
was used to down 3 MiG-21’s before transferring to the 347th TFW and onto the 18th TFW/67th
TFS, eventually going to ANG’s. The first was the Illinois ANG 170th TFS/183 TFG and then in
1980 the 123rd FIS/142nd FIG Oregon ANG where in 1989 it was retired and later put on display
at the Seattle Museum of Flight.
Specifications :
| Dimensions | |
| Length: | 17.7m |
| Height: | 4.7m |
| Wingspan: | 11.6m |
| Wingarea: | 49.2 sq m |
| No. of Engines: | 2 |
| Powerplant : | General Electric J79-GE-10 (A/B 17,900Lb/8,119Kg) |
| Performance |
|
| Range: | 2,222 km |
| Cruise Speed: | 908 km/h |
| Max Speed: | 2,299 km/h |
| Climb: | 12,572 m/min |
| Ceiling: | 16,672 m |
