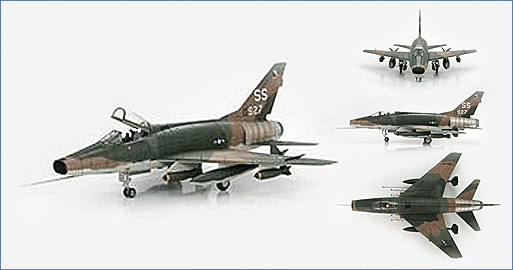

F-100D Super Sabre 309th TFS, 31st TFW, Vietnam 1970 "Thor's Hammer"
HA2110
General Background
The North American F-100 Supersabre served the USAF from 1954 to 1971 and the ANG until 1979. The F-100 commonly referred to as the “Hun”, a shortened version of “one hundred” was the first US fighter capable of attaining supersonic speed in level flight. The Hun was used extensively as close-air-support in South Vietnam.
The Aircraft
The 309th TFS “Dusty Ducks” were based at Tuy Hoa AB, South Vietnam from December 6, 1966 until September 8, 1970. The 31st TFW commanded five F-100 squadrons and was the most important F-100 wing in South Vietnam flying interdiction strikes, reconnaissance, rescue combat patrol and attacked enemy anti-aircraft locations. The 31st TFW squadrons took part in the Tet Offensive, the Siege of Khe Sanh and the extraction of troops from Kham Duc. The 31st reached 100,000 combat sortie milestone in September 1969.
Specifications :
Crew: 1
Dimensions:
Length: 50 ft (15.2 m)
Wingspan: 38 ft 9 in (11.81 m)
Height: 16 ft² 2¾ in (4.95 m)
Wing area: 400 ft² (37 m²)
Weight:
Empty weight: 21,000 lb (9,500 kg)
Loaded weight: 28,847 lb (13,085 kg)
Maximum take off weight: 34,832 lb (15,800 kg)
Engine Performance:
Powerplant: 1× Pratt & Whitney J57-P-21/21A turbojet
Dry thrust: 10,200 lbf (45 kN)
Thrust with afterburner: 16,000 lbf (71 kN)
Aspect ratio: 2 3.76
Drag area: 5.0 ft² (0.46 m²)
Zero-lift drag coefficient: 0.0130
Performance:
Maximum speed: 750 kn (864 mph, 1,390 km/h)
Range: 1,733 NM (1,995 mi, 3,210 km)
Service ceiling: 50,000 ft (15,000 m)
Rate of climb: 22,400 ft/min (114 m/s)
Wing loading: 72.1 lb/ft² (352 kg/m²)
Thrust/weight: 0.55
Lift-to-drag ratio: 13.9
Armament:
Guns: 4× 20 mm (0.787 in) M39 cannon
Missiles: 4× AIM-9 Sidewinder Missiles or GAM-83 Bullpup Missile
Bombs: 7,040 lb (3,190 kg) of weapons, including:
Conventional bombs or
Mk. 7 nuclear bomb or
Mk. 28 nuclear bomb or
Mk. 38 nuclear bomb or
Mk. 43 nuclear bomb or
Mk. 57 nuclear bomb or
Mk. 61 nuclear bomb
