Air Power Series>1:72 die-cast display model>F-100>HA2117

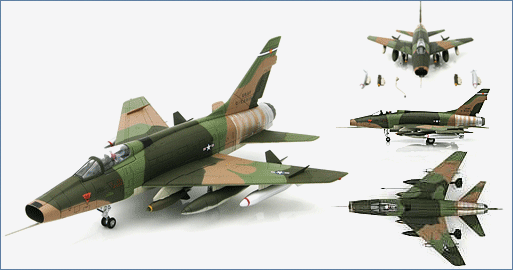

F-100D Super Sabre 0-52816, 120th TFS, Colorado ANG
General Background
The North American F-100 Supersabre served the USAF from 1954 to 1971 and the ANG until 1979. The F-100 commonly referred to as the “Hun”, a shortened version of “one hundred” was the first US fighter capable of attaining supersonic speed in level flight. The Hun was used extensively as close-air-support in South Vietnam.
The Aircraft
In June 21, 1945 the 120th TRS was reconstituted and 11 months later re-designated
120th FS and assigned to the Colorado ANG. The 120th FS "Colorado Cougars" was
stationed at Buckley Field, a section of Lowry AFB, Colorado and was awarded the
history and honors as well as the Guidon (colors) of the former 120th TRS. In January
1961 the unit was once again re-designated, this time 120th TFS and in May 1968 went
to Phan Rang AB, South Vietnam with their F-100Cs. When the 120th returned from
Vietnam in April 1969 they re-equipped with the F-100D variant which they flew until
April 1974 when the converted to the LTV A-7D.
Specifications :
| Crew: | 1 |
| Dimensions: | |
| Length: | 50 ft (15.2 m) |
| Wingspan: | 38 ft 9 in (11.81 m) |
| Height: | 16 ft² 2¾ in (4.95 m) |
| Wing area: | 400 ft² (37 m²) |
| Weight: | |
| Empty weight: | 21,000 lb (9,500 kg) |
| Loaded weight: | 28,847 lb (13,085 kg) |
| Maximum take off weight: | 34,832 lb (15,800 kg) |
| Engine Performance: | |
| Powerplant: | 1× Pratt & Whitney J57-P-21/21A turbojet |
| Dry thrust: | 10,200 lbf (45 kN) |
| Thrust with afterburner: | 16,000 lbf (71 kN) |
| Aspect ratio: | 2 3.76 |
| Drag area: | 5.0 ft² (0.46 m²) |
| Zero-lift drag coefficient: | 0.0130 |
| Performance: | |
| Maximum speed: | 750 kn (864 mph, 1,390 km/h) |
| Range: | 1,733 NM (1,995 mi, 3,210 km) |
| Service ceiling: | 50,000 ft (15,000 m) |
| Rate of climb: | 22,400 ft/min (114 m/s) |
| Wing loading: | 72.1 lb/ft² (352 kg/m²) |
| Thrust/weight: | 0.55 |
| Lift-to-drag ratio: | 13.9 |
| Armament: | |
| Guns: | 4× 20 mm (0.787 in) M39 cannon |
| Missiles: | 4× AIM-9 Sidewinder Missiles or GAM-83 Bullpup Missile |
| Bombs: | 7,040 lb (3,190 kg) of weapons, including: |
| Conventional bombs or | |
| Mk. 7 nuclear bomb or | |
| Mk. 28 nuclear bomb or | |
| Mk. 38 nuclear bomb or | |
| Mk. 43 nuclear bomb or | |
| Mk. 57 nuclear bomb or | |
| Mk. 61 nuclear bomb |
