Air Power Series>1:72 die-cast display model>SB2C>HA2206

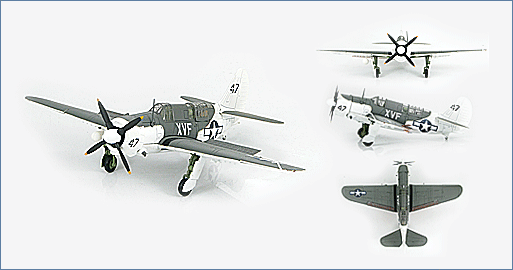

SB2C-4E Helldiver Black 47, ASW patrol
HA2206
General Background
The SB2C was designed to replace the SBD Dauntless. When the Helldivers were first delivered they were so poorly manufactured that some broke in half on landing and wings fell apart in a dive. Some countries cancelled orders and the USAAF never used the 900 they received. Eventually after over 800 modifications and technical changes the Helldiver went on to become one of the most effective dive-bombers of WWII. Most people referred to the plane as “The Big Tail Beast” or just “The Beast”.
The Aircraft
By the middle of 1944, most of the bugs had been ironed out of the beast and the SB2C-4 became the standard issue of bombing and scouting squadrons. These were supplemented and were eventually replaced by the ultimate Helldiver, the SB2C-5. This version remained in active Navy service until replaced by the Douglas AD Skyraider.
Specifications :
General data
Manufacturer: Curtiss-Wright
Crew: 2 X 1 pilot, 1 radio operator/gunner
Dimensions
Length: 36 ft 9 in (11.2 m)
Wingspan: 49 ft 9 in (15.2 m)
Height: 14 ft 9 in (4.5 m)
Wing area: 422 ft² (39.2 m²)
Weights
Empty: 10,114 lb (4,588 kg)
Loaded: 13,674 lb (6,202 kg)
Max takeoff: 16,800 lb (7,600 kg)
Performance
Powerplant: 1× Wright R-2600 Cyclone radial engine, 1,900 hp (1,400 kW)
Maximum speed: 294 mph (473 km/h)
Range: 1,200 miles (1,900 km)
Service ceiling: 25,000 ft (7,600 m)
Rate of climb: 1,750 ft/min (8.9 m/s)
Armament: 2 x .50 cal (20 mm) cannon in each wing
2 x 0.30 in (7.62 mm) machine guns in the rear cockpit
Internal bay - 2,000 lb (900 kg) of bombs or 1x Mark 13-2 torpedo
Hardpoints: 500 lb (225 kg) of bombs each wing
