Air Power Series>1:72 die-cast display model>F-105>HA2506

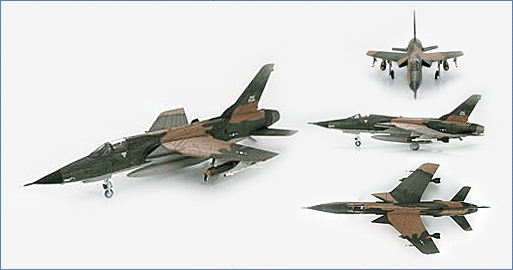

F-105D Thunderchief 354th TFS/355th TFW, Thailand, 11th August 1967, "Dropping the Doumer Bridge"
General Background
The Republic F-105 Thunderchief first entered service in 1958. It had been designed for high-speed low-level penetration to deliver a nuclear bomb but was converted to deliver conventional payloads. It was the heaviest U.S. single-engined fighter ever made and could carry a greater bomb load than the B-17, B-24 or B-29. Best known for its action in Vietnam the F-105 flew over 20,000 combat missions with the loss of 382 aircraft out of the 833 produced.
The Aircraft
On 11 August 1967, the 355th conducted a raid on the Hanoi railroad and highway bridge. Thirty-six strike aircraft led by the 355th dropped 94 tons of bombs and destroyed one rail span and two highway spans on the northeast side of the bridge. The superstructure was damaged and the highway portion on the north side of the bridge, where it crossed the island in the river, was cut. This stopped the movement of an average of 26 trains per day with an estimated capacity of 5,950 short tons. Two aircraft were damaged, but no pilots were lost.
Specifications :
| Nick Names: | Ultra Hog, Super Hog, Iron Butterfly, Lead Sled, Thud |
| Role: | Fighter/Bomber |
| User Countries: | U.S.A |
| Crew: | (1) pilot |
| Performance | |
| Engine: | (1) Pratt & Whitney J75-P-19W turbojet, rated at 17,200 lb.s.t. dry and 26,500 lb.s.t. with afterburner |
| Maximum Speed: | 1,420 mph at 38,000 ft |
| 1,372 mph at 36,000 ft | |
| 1,122 mph at 50,000 ft | |
| 836 mph at sea level | |
| Stall speed: | 208 mph |
| Initial Climb Rate: | 34,500 fpm (clean) |
| Service Ceiling: | 32,100 ft |
| Combat Ceiling: | 48,500 ft |
| Maximum Ceiling: | 50,000 ft |
| Combat Range: | 778 miles |
| Maximum Range with full external fuel: | 2,208 miles |
| Weight | |
| Emptyt: | 27,500 lbs |
| Combat: | 35,637 lbs |
| Gross: | 48,400 lbs |
| Maximum Take/Off: | 352,546 lbs |
| Fuel | |
| Normal Internal Fuel Load: | 1,160 US gallons |
| Internal Weapons Bay: | 390 US gallon auxiliary tank |
| Optional 450 or 650 US gallon external tanks on the fuselage centerline | |
| Plus a 450 US gallon tank on each of the inboard under-wing pylons | |
| Dimensions | |
| Wing Span: | 34 ft 11 in. |
| Length: | 64 ft 3 in. |
| Height: | 19 ft 8 in. |
| Wing Area: | 385 sq. ft. |
| Armament: | (1) 20-mm M61A1 rotary cannon with 1028 rounds (fire rate 6,000 rpm) |
| Up to 8,000 lbs of ordnance could be carried in the internal weapons bay | |
| An additional 6,000 lbs of ordnance could be carried on (4) under-wing pylons and (1) rack under the fuselage center-line | |
| Up to (4) AIM-9 Sidewinder missiles for self-defense | Up to (4) AGM-12 Bullpup (not very effective in Vietnam) | (1) Mk 28 or Mk 43 nuclear weapon |
| Up to (2) 3,000 lb bombs | |
| Up to (5) 1,000 lb bombs | |
| Up to (16) 750 lb bombs | |
| Mk 77 napalm, ECM pods, 2.75 in. rockets |
