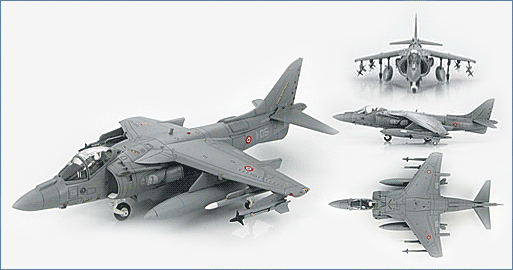

Air Power Series>1:72 die-cast display model>Harrier>HA2607

General Background

The Harrier is the first operational V/STOL (Vertical/Short Takeoff and Landing) aircraft. By directing the engines exhaust through movable nozzles the force could be used to propel the aircraft along a runway or lift it vertically and then into a forward motion. Because of this ability to lift off vertically the Harriers began to be referred to as “jump jets”. These aircraft were continuously being refined and improved over the years with many new variants being produced.

The Aircraft

The Italian navy (Marina Militare Italiana) operates 16 AV-8B+ aircraft, built under license in Italy, plus 2 TAV-8Bs for training, and 3 Boeing built AV-8s in the US for the initial pilot course under the USMC. They are based at Taranto, and are embarked on Italy's aircraft carrier, Giuseppe Garibaldi, and will also operate from the planned new carrier Luigi Einaudi.

Specifications :

Crew:	1
Dimensions
Length:	46 ft 4 in (14.12 m)
Height:	11 ft 8 in (3.56 m)
Wingspan:	30 ft 4 in (9.25 m)
Wing area	343 ft² (22.6 m²)
Weights
Empty:	12,500 lb (5,700 kg)
Loaded:	15,703 lb (7,123 kg)
Maximum Takeoff :	VTO 18,950 lb (8,595 kg)
	STO 31,000 lb (14,016 kg
Powerplant
Engines:	1× Rolls-Royce Pegasus Mk. 105 turbofan with four thrust vectored exhaust nozzles, 21,750 lb (96.7 kN)
Performance
Maximum speed:	662 mph (1,065 km/h)
Combat radius:	300 nmi (556 km)
Ferry range:	2,015 mi ( 3,242.8 km )
Service ceiling:	50,000 ft (15,000 m)
Rate of climb:	14,715 ft/min (74.8 m/s)
Armament
Guns	2 × 30 mm (1.18 in) ADEN cannon pods under the fuselage
Hardpoints	8× under-wing pylon stations holding up to 8,000 lb (3,650 kg) of payload
