Air Power Series>1:72 die-cast display model>Harrier>HA2616

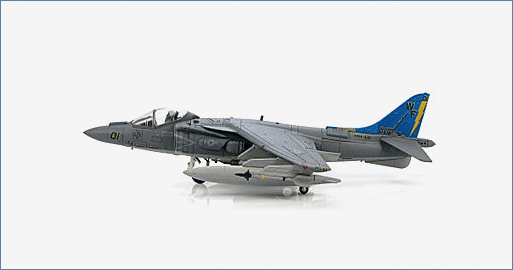

AV-8B Harrier II Plus BuNo 165006, VMA-513 NAF, El Centro, California, November 2010
HA2616
General Background
The Harrier is the first operational V/STOL (Vertical/Short Takeoff and Landing) aircraft. By directing the engines exhaust through movable nozzles the force could be used to propel the aircraft along a runway or lift it vertically and then into a forward motion. Because of this ability to lift off vertically the Harriers began to be referred to as “jump jets”. These aircraft were continuously being refined and improved over the years with many new variants being produced.
The Aircraft
VMA-513 "Flying Nightmares" was first commissioned as VMF-513 in February 1944. The squadron transitioned to the AV-8A Harrier in 1970 and was re-designated VMA-513 in 1971. In 2001 they were the only squadron in the world to simultaneously use all three variants of the AV-8B. VMA-513 was the first Harrier unit to drop a JDAM in combat, the first to use the LITENING II targeting pod in combat and in 2007 the first squadron to fly MAG missions from a foreign ship.
Specifications :
Developed by: Boeing, BAE Systems, and Rolls Royce
Operators: USMC, Italian Navy, Spanish Navy
Crew: (1) pilot
Performance
Powerplant: (1) Rolls-Royce Pegasus 11-61 (F402-RR-408) (Mk 105) vectored-thrust turbofan engine, 23,500 lbf (105 kN)
Maximum speed @ sea level: .89 Mach (662 mph) (1,070 km/h)
Range: 1,200 nm (1,400 mi) (2,200 km)
Combat radius: 300 nmi (556 km)
Ferry range: 1,800 nmi (3,300 km)
Rate of climb: 14,700 ft/min (4,485 m/min)
Dimensions
Length: 46 ft 4 in (14.12 m)
Height: 11 ft 8 in (3.56 m)
Wingspan: 30 ft 4 in (9.25 m)
Wing area 243 ft² (22.6 m²)
Weights
Empty: 13,968 lb (6,340 kg)
Loaded: 22,950 lb (10,410 kg)
Maximum Takeoff : Rolling / 31,000 lb (14,100 kg)
Vertical / 20,755 lb (9,415 kg)
Armament
Guns (1) X GAU-12U "Equalizer" 25 mm (0.98 in) cannon with 300 rounds of ammunition.
Hardpoints (7) capable of carrying up to 13,200 lb (STOVL) of ordnance such as iron bombs, cluster bombs, napalm canisters, laser-guided bombs, AGM-65 Maverick or AGM-84 Harpoon missiles, Sea Eagle missiles, a LITENING targeting pod, up to (4) AIM- 9 Sidewinder or similar-sized infrared-guided missiles, up to (4) AIM-120 AMRAAM missiles, as well as new “Smart Weapons” such as JDAM (Joint Direct Attack Munition).
Avionics Raytheon APG-65 pulse Doppler radar
