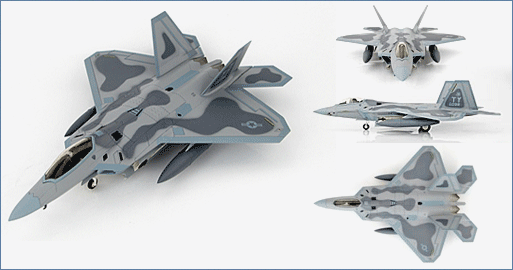

Air Power Series>1:72 die-cast display model>F-22>HA2816

General Background

The USAF developed a requirement for a new air superiority fighter to replace the F-15 Eagle. Two proposals were submitted with the Lockheed Martin F-22 Raptor being selected as the new Advanced Tactical Fighter (ATF). The aircraft is constructed using 39% titanium, 24% composite material, 16% aluminum and 1% thermoplastic by weight. All these components contribute to the F-22 being a light weight, extremely maneuverable, extremely fast aircraft that uses stealth technology. The F-22 is also capable of ground attack, electronic warfare and signals intelligence.

The Aircraft

Lockheed F-22 Raptor 05-4098 was delivered July 20, 2007 and is currently allocated to the 95th FS. On August 28, 2015 F-22 05-4098 and three other F-22s of the 95th FS/325th FW from Tyndall AFB arrived at Spangdahlem Air Base, Germany as part of the first F-22 European training program “Operation Atlantic Resolve”. Included in the arrival was a McDonnell Douglas C-17 Globemaster III with 50+ support airmen. This also tested the ability to F-22s, men and materiel to Europe in case it ever became necessary.

Specifications :

First flight:	September 7, 1997
Planned Production:	750 aircraft initial program objective
Altered plan in 1990:	648 aircraft
Altered plan in 1994:	442 aircraft
In 1997 Department of Defense report:	339 aircraft
In 2006 the Pentagon wanted -183 aircraft:	2008 approval for 4 additional aircraft bringing the total to 187
Number built as of August 2009:	145
Role:	Air superiority fighter
Crew:	(1) pilot
Performance
Engines:	(2) Pratt & Whitney F119-PW-100 engines producing 35,000 lbst of thrust
Speed:	Mach 1.8 (super cruise: Mach 1.5)
G Limit:	+9 G
Ceiling:	60,000 ft (18,290 m)
	The F-22 and other fighters can reach this altitude, but only the F-22 can perform tactical maneuvers at this level.
Dimensions
Length:	62.08 ft (18.90 m)
Height:	16.67 ft (5.08 m)
Wingspan:	44.5 ft (13.56 m)
Wing Area:	840 sq ft (78.04 sq m)
Horizontal Tail-span:	29 ft (8.84 m)
Weights
Empty Weight:	31,670 lb (14,365 kg)
Maximum Takeoff Weight:	60,000 lb (27,000 kg)
Armament:
Internal:	(1) 20mm Cannon
	(4) AIM-9 Sidewinders (side weapon bays)
	(4) AIM-120A AMRAAM (internal ventral bay)
	(6) AIM-120Cs (internal ventral bay)
	(6) GBU-32 JDAM PGMs (internal ventral bay)
	(8) GBU-39 Small Diameter Bombs (250lbs ea)
External:	(4) under-wing hard-points with a maximum of 5,000lbs (2,270kg) of mission-specific weaponry or fuel drop-tanks.
