Air Power Series>1:72 die-cast display model>A-1>HA2912

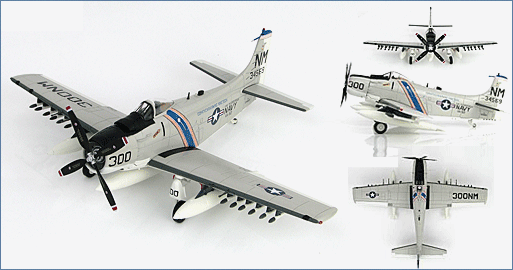

Douglas A-1H Skyraider BuNo 134569, VA-52 "Knight Riders", USS Ticonderoga, summer 1967
HA2912
General Background
The A-1 Skyraider originated as a carrier-based torpedo and dive bomber. Deliveries as the AD-1 to the Navy began in November 1946 and in 1962 was renamed A-1. It was the first single-seat torpedo/dive bomber to serve with the Navy. The primary mission of the A-1 was close air support for ground troops because of its heavy ordnance load and accuracy. The aircraft had great success in Korea and Vietnam. There were 3,180 Skyraiders built in seven major models and 28 different versions. There were 266 A-1s lost in Vietnam.

Some nicknames - Able Dog, Spad, Sandy, Hobo, Firefly, Zorro and "Crazy Water Buffalo," a VNAF nickname.
The Aircraft
VA-52 “Knight Riders” was one of three A-1 units to wear a CAG paint scheme during the Vietnam War. It wore a diagonal blue fuselage band containing various colored stripes that represented the squadrons belonging to CVW-19. During VA-52’s third and last Vietnam deployment all its aircraft wore midnight blue weapon pylons. A-1H 134569 was built in 1953 and originally served with VA194 and then two other squadrons before transferring to VA-52. Eventually 134569 was transferred to the USAF and then to the VNAF and was shot down in 1972.
Specifications :
Dimensions
Length: 39 ft 3 in
Height: 15 ft 8 in
Wingspan: 50 ft 1/4 in
Wing area: 400.33 sq ft
Weight
Empty Weight: 12,070 lbs
Normal Loaded: 18,400 lbs
Maximum Weight: 24,000 lbs
Performance
Engine: (1) 2,500 hp Wright R-3350-26WA Duplex Cyclone 18-cylinder air-cooled radial, rated at 2,600 hp for takeoff and 2,100 hp at 14,000 feet.
Max. Speed: 342 mph at 15,400 ft
319 mph at sea level
Cruising Speed: 180 mph
Combat Ceiling: 29,400 ft
Combat Radius: 275 miles with 2,000 lbs of bombs
Maximum Ferry Range: 3,240 miles
Armament: (4) 20-mm cannon in the wing
  (6) Racks underneath each outer wing
  (1) Pylon under each inner wing
  (1) Pylon underneath the fuselage centerline
