Air Power Series>1:72 die-cast display model>A-1>HA2913

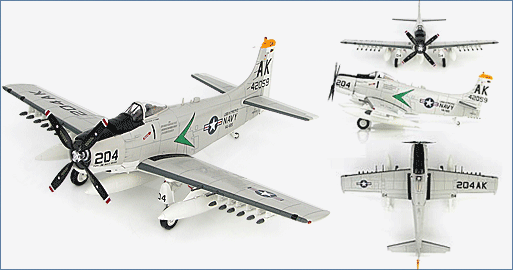

Douglas A-1H Skyraider "Puff The Magic Dragon" BuNo 142059, VA-165 "Boomers", USS Inttrepid, summer 1966
HA2913
General Background
The A-1 Skyraider originated as a carrier-based torpedo and dive bomber. Deliveries as the AD-1 to the Navy began in November 1946 and in 1962 was renamed A-1. It was the first single-seat torpedo/dive bomber to serve with the Navy. The primary mission of the A-1 was close air support for ground troops because of its heavy ordnance load and accuracy. The aircraft had great success in Korea and Vietnam. There were 3,180 Skyraiders built in seven major models and 28 different versions. There were 266 A-1s lost in Vietnam.

Some nicknames - Able Dog, Spad, Sandy, Hobo, Firefly, Zorro and "Crazy Water Buffalo," a VNAF nickname.
The Aircraft
Douglas A-1H Skyraider 142059 was delivered to VA-125 in 1956 and served with four other squadrons before going to the VA-165 “Boomers” in 1963. Between April 1966 and November 1966, VA-165 carried out its third and final tour of Vietnam. On board the USS Intrepid were VA- 125 and one squadron of A-4 Skyhawks. A-1H 142059 “Puff The Magic Dragon” was assigned to Lt. Cdr “Speed” Ritzman for this period. In 1967 this aircraft was transferred to the USAF and later to the VNAF where it was shot down in May 1968.
Specifications :
Dimensions
Length: 39 ft 3 in
Height: 15 ft 8 in
Wingspan: 50 ft 1/4 in
Wing area: 400.33 sq ft
Weight
Empty Weight: 12,070 lbs
Normal Loaded: 18,400 lbs
Maximum Weight: 24,000 lbs
Performance
Engine: (1) 2,500 hp Wright R-3350-26WA Duplex Cyclone 18-cylinder air-cooled radial, rated at 2,600 hp for takeoff and 2,100 hp at 14,000 feet.
Max. Speed: 342 mph at 15,400 ft
319 mph at sea level
Cruising Speed: 180 mph
Combat Ceiling: 29,400 ft
Combat Radius: 275 miles with 2,000 lbs of bombs
Maximum Ferry Range: 3,240 miles
Armament: (4) 20-mm cannon in the wing
  (6) Racks underneath each outer wing
  (1) Pylon under each inner wing
  (1) Pylon underneath the fuselage centerline
