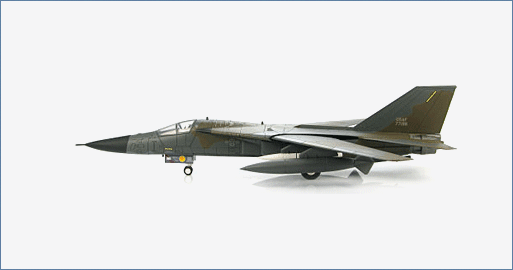

Air Power Series>1:72 die-cast display model>F-111>HA3014

General Background

The General Dynamics F-111 “Aardvark” entered service in 1967 as a medium-range aircraft designed for interdiction and tactical strikes. The F-111 was used as an all-weather attack aircraft capable of low-level penetration of enemy territory. It also could be used for reconnaissance and electronic warfare. Some unique features are variable geometry wings, the 2 crew members sat side by side in an escape capsule, internal weapons bay; terrain following radar and afterburning turbofans. The USAF retired their last F-111 in 1998 but the RAAF still use theirs.

The Aircraft

The name "Ruptured Duck" was first used on B-25B 40-2261, one of Jimmy Doolittle's Raiders. The next aircraft to use the name was the B-24H 42-95354 of the 389th Bomb Group (H) and then with the 564th Bomb Squadron at RAF Hethel between June 13, 1943 to May 20, 1945. The latest user of "Ruptured Duck" is FB-111A constructed in 1967 as c/n 10 serial 67-7196. In 1989 it was assigned to the 393rd BS, 509th BW, Pease AFB. The aircraft was later converted to an F-111G.

Specifications :

Crew :	2 X pilot, weapon systems officer
Performance:
Engines :	2 X Pratt & Whitney TF30-P-3 generating 18,500 lbs. thrust each
Maximum speed :	1,452 mph (2,336 km/h)
Cruising speed :	685 mph (1,102 km/h)
Normal Range :	3,632 miles (5,845 km)
Service Ceiling :	57,000 ft. (17,373 m)
Dimensions :
Length :	73.5 ft (22.4 m)
Wingspan :	63.0 ft (19.2 m) spread - 32.0 ft (9.74 m) swept
Height :	17.13 ft (5.22 m)
Wing area :	657.4 ft² (61.07 m²) spread - 525 ft² (48.77 m²) swept
Weights :
Empty:	47,481 lb (21,537 kg)
Loaded:	82,843 lb (37,577 kg)
Maximum Take:	98,979 lb (44,896 kg)
Armament:	1 X 20mm M61A1 cannon and up to 24 conventional or nuclear weapons
