Air Power Series>1:72 die-cast display model>F-101>HA3702

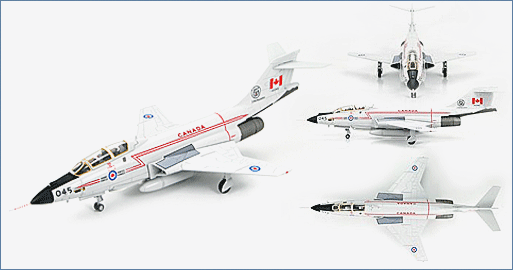

McDonnell CF-101B Voodoo 101045, No.416 Sqn., Canadian Armed Forces
General Background
The McDonnell F-101 Voodoo (nicknamed One-oh-Wonder") first flew in September 1954 with the first production F-101A making its first operational flight in May 1957. In September 1957 the F-101C became operational followed by the F-101B in January 1959. When production ended McDonnell had built 785 Voodoos, 480 of them were the two-seat all-weather interceptor F-101Bs. The RF-101 reconnaissance version was the world’s first supersonic photo-recon aircraft. The only major foreign operator of the Voodoo was the Royal Canadian Air Force (RCAF) that acquired 56 CF-101B and 10 CF-101F.
The Aircraft
416 Fighter Squadron formed in November 1941 and became the "Lynx" All-Weather Fighter Squadron in February 1957. In January 1962 416 AWFS moved to Bagotville, Quebec and in November 1962 moved to CFB Chatham, New Brunswick for the next 22 years. Former USAF Voodoo 57-382 entered Canadian service as CF-101B c/n 560 serial 101045 in May 1971 until September 1984. At the end of 1984 the Voodoos were replaced by CF-18 Hornets and the 416 became a TFS and was the world's last front-line unit flying Voodoos.
Specifications :
| Role: | two-seat all-weather interceptor |
| Crew: | 2 |
| Dimensions | |
| Length : | 67 ft 5 in (20.55 m) |
| Wingspan : | 39 ft 8 in (12.09 m) |
| Wing Area : | 368 ft² (34.20 m²) |
| Height : | 18 ft 0 in (5.49 m) |
| Weight | |
| Empty : | 28,495 lb (12,925 kg) |
| Loaded : | 45,665 lb (20,715 kg) |
| Maximum Take Off : | 52,400 lb (23,770 kg) |
| Performance: | |
| Powerplant : | 2 X Pratt & Whitney J57-P-55 afterburning turbojets |
| Dry thrust : | 11,990 lbf (53.3 kN) each |
| Thrust with afterburner : | 16,900 lbf (75.2 kN) each |
| Internal fuel capacity : | 2,053 gal (7,771 liters) or |
| With two external tanks : | 2,953 gal (11,178 liters) |
| Maximum speed : | Mach 1.72 (1,134 mph / 1,825 km/h) @ 35,000 ft (10,500 m) |
| Range : | 1,520 mi (1,320 nm / 2,450 km) |
| Service ceiling : | 58,400 ft (17,800 m) |
| Rate of climb : | 49,200 ft/min (250 m/s) |
| Armament : | |
| Missiles : | 4 X AIM-4 Falcon Or |
| 2 X AIM-4 Falcon and 2 X AIR-2 Genie nuclear rockets | |
| Avionics : | Hughes MG-13 fire control system |
