Air Power Series>1:72 die-cast display model>F-16>HA3829

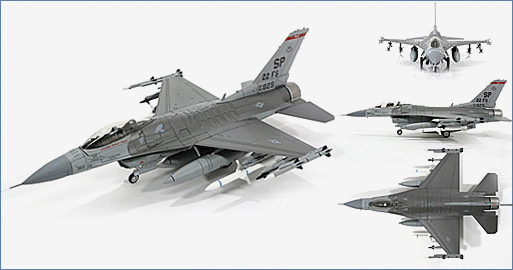

Lockheed F-16CJ Fighting Falcon 90-0829/SP, 22nd FS Commander's Jet, 2007
General Background
The F-16 Fighting Falcon was produced by General Dynamics who became Lockheed who then merged with Martin Marietta to become Lockheed Martin. The F-16 entered service in January 1979 as a multi-role jet fighter that evolved into an all-weather multi-role aircraft capable of sustaining 9-g turns. The F-16 is relatively inexpensive to purchase and maintain so the U.S. and 25 other countries added it to their inventory. The Fighting Falcon is referred to by its pilots as the "Viper"; and will remain in USAF service until 2025.
The Aircraft
In 1994 with restructuring the 22nd FS (Stingers) moved from Bitburg AB, Germany to
Spangdahlem AB to replace the 480th FS. The 22nd FS acquired the 480th FS F-16 Fighting
Falcon and 90-0829 was one of these aircraft that at one point became the squadron flagship. In
1998 the 22nd FS primary role changed from general-purpose air interdiction to that of “Wild
Weasel” suppressing enemy air defenses (SEAD). The Stingers remained in this role until 2010
when restructuring de-activated them and re-activated the 480th FS.
Specifications :
| Role: | Multi-role fighter |
| Manufacturer : | General Dynamics Corp. / Lockheed Martin Corp |
| Initial Unit cost : | F-16C/D, $20 million plus |
| First Deployed : | January 1979 |
| (F-16A)Crew : | 1 x F-16C / 1 or 2 x F-16D |
| Power Plant : | F-16C/D |
| 1 x Pratt and Whitney F100-PW-200/220/229 or | |
| 1 x General Electric F110-GE-100/129 | |
| Thrust : | F-16C/D / 27,000 lb (12,150 kg) |
| Length: | 49 ft, 5 in (14.8 m) |
| Wingspan | 32 ft 8 in (9.8 m) |
| Height: | 16 ft (4.8 m) |
| Speed: | 1,500 mph (Mach 2 @ altitude) |
| Ceiling: | Above 50,000 (15 km) |
| Maximum Takeoff Weight: | 37,500 lb (16,875 kg) |
| Range: | Greater than 2,425 mi (2,100 nm / 3,900 km) |
| Combat Radius: | F-16C 851.6 mi (1,370 km / 740 nm) w/ 2 x 2,000 lb bombs + 2 x AIM-9 + 1,040 U.S. gal external tanks |
| 391.3 mi (630 km / 340 nm) w/ 4 x 2,000 lb bombs + 2 x AIM-9 + 340 U.S. gal external tanks | |
| 230.2 mi (370 km / 200 nm) + 2 hr. 10 min. patrol w/ 2 x AIM-7 + 2 x AIM-9 + 1,040 lb U.S. gal external tanks | |
| Armament: | 1 x M-61A1 20mm multi-barrel cannon with 500 rounds |
| 1 x M-61A1 20mm multi-barrel cannon with 500 rounds | |
| External stations can carry up to six air-to-air missiles | |
| Conventional air-to-air and air-to-surface munitions | |
| Electronic countermeasure pods. |
