Air Power Series>1:72 die-cast display model>F-16>HA3875

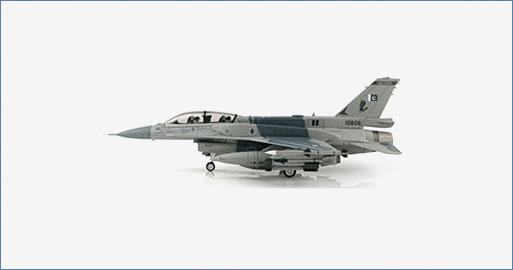

Lockheed F-16D Block 52 10806, No.5 Sqn. “Falcons”, Pakistani AF, 2017
General Background
The F-16 Fighting Falcon was produced by General Dynamics who became Lockheed who then merged with Martin Marietta to become Lockheed Martin. The F-16 entered service in January 1979 as a multi-role jet fighter that evolved into an all-weather multi-role aircraft capable of sustaining 9-g turns. The F-16 is relatively inexpensive to purchase and maintain so the U.S. and 25 other countries added it to their inventory. The Fighting Falcon is referred to by its pilots as the "Viper"; and will remain in USAF service until 2025.
The Aircraft
On October 30, 2010 Lockheed Martin F-16D Block 52+ 07-0018 along with two F-16C Block
52+, was delivered to the Pakistan Air Force at Shahbaz Air Base. The aircraft received the PAF
serial 10806 and assigned to the No. 5 Squadron “Falcons”, Pakistan’s only F-16 squadron. The
No. 5 Squadron is Pakistan’s second oldest squadron and was formed on August 15, 1947. In
total Pakistan received twelve C variants and six D variants of the F-16 between June 2010 and
February 2012.
Specifications :
| Role: | Multi-role fighter |
| Manufacturer : | General Dynamics Corp. / Lockheed Martin Corp |
| Initial Unit cost : | F-16C/D, $20 million plus |
| First Deployed : | January 1979 |
| (F-16A)Crew : | 1 x F-16C / 1 or 2 x F-16D |
| Power Plant : | F-16C/D |
| 1 x Pratt and Whitney F100-PW-200/220/229 or | |
| 1 x General Electric F110-GE-100/129 | |
| Thrust : | F-16C/D / 27,000 lb (12,150 kg) |
| Length: | 49 ft, 5 in (14.8 m) |
| Wingspan | 32 ft 8 in (9.8 m) |
| Height: | 16 ft (4.8 m) |
| Speed: | 1,500 mph (Mach 2 @ altitude) |
| Ceiling: | Above 50,000 (15 km) |
| Maximum Takeoff Weight: | 37,500 lb (16,875 kg) |
| Range: | Greater than 2,425 mi (2,100 nm / 3,900 km) |
| Combat Radius: | F-16C 851.6 mi (1,370 km / 740 nm) w/ 2 x 2,000 lb bombs + 2 x AIM-9 + 1,040 U.S. gal external tanks |
| 391.3 mi (630 km / 340 nm) w/ 4 x 2,000 lb bombs + 2 x AIM-9 + 340 U.S. gal external tanks | |
| 230.2 mi (370 km / 200 nm) + 2 hr. 10 min. patrol w/ 2 x AIM-7 + 2 x AIM-9 + 1,040 lb U.S. gal external tanks | |
| Armament: | 1 x M-61A1 20mm multi-barrel cannon with 500 rounds |
| 1 x M-61A1 20mm multi-barrel cannon with 500 rounds | |
| External stations can carry up to six air-to-air missiles | |
| Conventional air-to-air and air-to-surface munitions | |
| Electronic countermeasure pods. |
