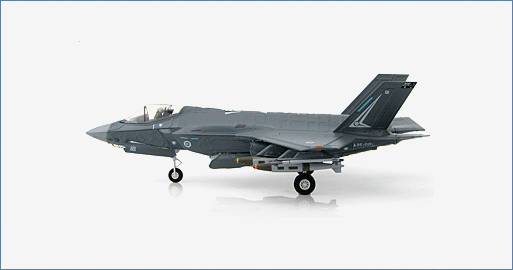

Lockheed F-35A Lightning II A35-001, RAAF, 2014
HA4406
General Background
The Lockheed F-35 is an advanced stealth fifth generation fighter combining speed and superb agility. There are three variants; F-35A, B and C. The F-35A CTOL (Conventional Take Off and Landing) and has four internal weapons stations in two weapons bays plus three optional external weapons stations. The F-35B STOVL (Short Take Off Vertical Landing) variant while the F-35C is a CV (Carrier Variant). The F-35 will replace the USAF A-10 and F-16, the F/A-18 for the USN and the F/A-18 and AV-8B Harrier for the USMC.
The Aircraft
Lockheed Martin manufactured the first RAAF F-35A Lightning II as AU-1 but it is referred to as A35-001 by the RAAF. Construction began on October 8, 2013 with the maiden flight on September 29, 2014. The aircraft will be moved to the USAF Training School at Luke AFB, Arizona early in 2015. The RAAF crews will train at Luke AFB before returning to Australia. The RAAF will acquire 72 F-35A's equipping 3 Squadron in 2018 but it isn't until 2023 that three combat plus one training squadrons will be complete.
Specifications :
Role: Multi-role stealth fighter
First Flight: December 16, 2006
Crew:
F-35A CTOL: 1
F-35B STOVL: 1
F-35C CV: 1
Powerplant:
F-35A: 1 x Pratt & Whitney F135-PW-100, 40,000 lbs thrust with afterburner,25,000 lbs without.
F-35B: 1 x Pratt & Whitney F135-PW-600, 38,000 lbs thrust with afterburner,26,000 lbs without and 40,500 lbs vertical.
F-35C: 1 x Pratt & Whitney F135-PW-100, 40,000 lbs thrust with afterburner,25,000 lbs without.
Internal Fuel Capacity:
F-35A: 18,250 lbs (8,278 kg)
F-35B: 13,500 lbs (6,125 kg)
F-35C: 19,750 lbs (8,960 kg)
Weights:
Empty:
F-35A: 29,300 lbs (13,000 kg)
F-35B: 32,300 lbs (14,700 kg)
F-35C: 34,800 lbs (15,800 kg)
Maximum:
F-35A: 70,000 lbs (31,800 kg)
F-35B: 60,000lbs (27,300 kg)
F-35C: 70,000 lbs (31,800 kg)
Dimensions:
F-35A:
Length: 51.4 ft (15.7 m)
Wingspan: 35 ft (10.7 m)
Height: 14.4 ft (4.38 m)
F-35B:
Length: 51.2 ft (15.6 m)
Wingspan: 35 ft (10.7 m)
Height: 14.3 ft (4.36 m)
F-35C:
Length: 51.5 ft (15.7 m)
Wingspan: 43 ft (13.1 m)
Height: 14.7 ft (4.48 m)
Performance:
Speed with full internal weapons load:
F-35A: Mach 1.6
F-35B: Mach 1.6
F-35C: Mach 1.6
Combat Radius with internal fuel:
F-35A: 590 nm (1,093 km)
F-35B: 450 nm (833 km)
F-35C: 600 nm (1,100 km)
Range with internal fuel:
F-35A: 1,200 nm (2,200 km)
F-35B: 900 nm (1,667 km)
F-35C: 1,200 nm (2,200 km)
Weapons (Standard Internal):
F-35A: 1 x 25 mm GAU-22/A cannon
2 x AIM-120C air-to-air missiles
2 x 2,000 pound GBU-31 JDAM guided bombs
Weapons Payload: 18,000 lbs (8,160 kg)
F-35B: 2 x AIM-120C air-to-air missiles
2 x 1,000 lb GBU32 JDAM guided bombs
F-35C: 2 x AIM-120C air-to-air missiles
2 x 2,000 pound GBU-31 JDAM guided bombs
