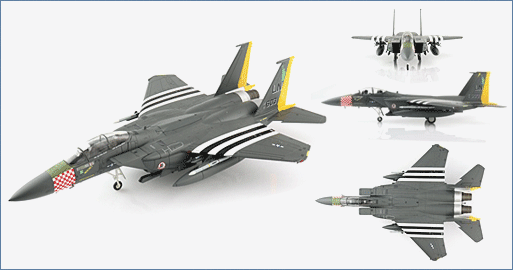

F-15E “75th D-Day Anniversary scheme” 91-0603, 494th FS, RAF Lakenheath, June 2019
HA4598
General Background
In 1967 the U.S. became aware of the Soviet MiG-25 Foxbat. This made it necessary to develop a new aircraft to counter the MiG-25. The USAF rejected the USN F-14 Tomcat and issued its own requirements. The solution came in the form of the McDonnell-Douglas (now Boeing) F-15 Eagle. The F-15A made its inaugural flight in July 1972 and in January 1976 the first Eagle entered service. The "E" entered service in 1989. The F-15 was the first dedicated USAF air superiority fighter since the F-86 Sabre".
The Aircraft
2019 was the 75th Anniversary of D-Day so the 3 squadrons of the 48th FW stationed at RAF Lakenheath each painted one F-15 depicting the markings of their earlier P-47s. The 492nd aircraft had its vertical stabilizer rudders and Vulcan cannon opening painted red while the 493rd was blue and the 494th “Black Panthers” F-15E 91-0603/LN was yellow. All 3 aircraft had D-Day invasion stripes on the wings and around the fuselage as well as a red checker board around the nose.
Specifications :
Role: C – Single-seat, all-weather, air-superiority fighter - 483 built
D – Dual-seat variant of the C – 92 built
E – Dual-seat, all-weather, multi-role strike fighter - 237 built
Dimensions
Length: C/D/E 63 ft 9 in (19.43 m)
Wingspan: C/D – 42 ft 10 in (13.06 m)
E – 42 ft 9.75 in (13.05 m)
Height: C/D – 18 ft 8 in (5.69 m)
E – 63 ft 9 in (5.63 m)
Weight:
Empty: C/D - 28,600 lb (12793 kg)
E – 31,700 lb (14,379 kg)
Maximum Take-off: C/D – 68,000 lb (30,844 kg)
E – 81,000 lb (36,741 kg)
Engines: C/D – 2 X P&W F100-PW turbofans with afterburners, each engine rated @ 25,000 thrust (11,250 kg)
E/F – Prior to August 1991 - 2 X P&W F100-P-220 turbofans, each rated @ 14,670 ls st (65.26kN) dry and 23,830 lb st (106.0 kN) with afterburners
After August 1991 – 2 X P&W F100-PW-229 turbofans, each rated @ 17,800 lb st (79.18 kN) dry and 29,100 lb st (129.45 kN) with afterburners
Range:
C/D: Ferry - 3,450 miles (3,000 nm) with CFTs + 3 X external fuel tanks
E: Ferry – 3,570 miles (3,100 nm) with CFTs + drop tanks
With Drop Tanks only: 2,765 miles (2,400 nm)
Normal Combat Radius: 790 miles (685 nm)
Maximum Combat Radius: 1,150 miles (1,000 nm)
Speeds: C/D – 1,875 mph (Mach 2.5 +)
E - Maximum Level Flight Clean @ High Altitude – 1,650 mph (2,655 km/h)
Cruise @ Optimum Altitude – 570 mph (917 km/h)
Ceiling: C/D – 65,000 ft (19,697 m)
E – 60,000 ft (18,290 m)
Armament:
C: 1 X M-61A1 20mm multi-barrel internal gun, 940 rounds of ammunition
4 X AIM-9L/M Sidewinders And
4 X AIM-7F/M Sparrow missiles Or
Missile Combination - AIM-9L/M, AIM-7-F/M and AIM-120
E: 1 X M-61A1 20mm multi-barrel internal gun, 512 rounds of ammunition
4 X AIM-9L/M Sidewinder on the under-wing stations And
12 X CBU-52 (6 with wing tanks)
12 X CBU-59 (6 with wing tanks)
12 X CBU-71 (6 with wing tanks)
12 X CBU-87 (6 with wing tanks)
12 X CBU-89 (6 with wing tanks)
20 X MK-20 (6 with wing tanks)
