Air Power Series>1:72 die-cast display model>S-3 Viking>HA4908

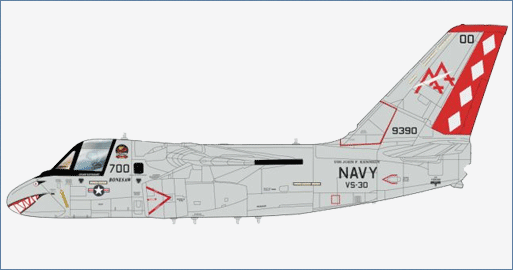

S-3B Viking BuNo 159390, VS-30 CAG, 2005
General Background
In 1974 the Lockheed S-3 Viking entered service with the USN as a twin-engine jet aircraft used
for enemy submarine warfare. By the late 1990’s the role shifted to surface warfare providing the
carrier battle group with long range surveillance capabilities and aerial refueling. The S-3 was in
production from 1974 until 1978 with 186 (187) aircraft completed. Most airframes saw upgrades
to the S-3B and sixteen became ES-3A “Shadow” electronic intelligence collection aircraft. The
low pitch sound of the engines earned the S-3 the nickname “Hoover” after the vacuum cleaner.
The Aircraft
Built as S-3A Viking 159390 MSN 394A-3026 the aircraft was delivered to VS-29 “Dragonflies” and shortly thereafter converted to an S-3B. In 1992 the aircraft was transferred to VS-30 “Diamondcutters” coded as AA-700 aboard the USS Saratoga before moving to the USS John F. Kennedy in April of 2004 as the CAG aircraft. VS-30 made its last deployment on June 7, 2004 in support of Operation Iraqi Freedom. On January 3, 2005 159390 was sent to AMARC as 2s0076. After 53 years of active service a deactivation ceremony for VS-30 was held on December 9, 2005.
Specifications :
| Crew : | 4 / 1 x Pilot, 1 x Co-Pilot, 1 x TACCO, 1 x Sensor Operator (TFO) |
| Number of Aircraft : | 91 new built, converted aircraft 43 A-5A and the first 6 A-5B = 140 |
| Performance: | |
| Engines : | 2 x General Electric TF34-GE-2 turbofans producing 9,275 lb (41.26 kN) of thrust per engine |
| Fuel Capacity (JP-5) : | Internal – 1,933 US gal (7,320 L) |
| External – 2 x 300 US gal (1,136 L) tanks | |
| Maximum speed : | @ Sea Level - 493 mph (795 km/h) |
| @ 20,000 ft (6,100 m) - 514 mph (828 km/h) | |
| Cruise : | 405 mph (650 km/h) |
| Range : | 2,050 miles (3,300 km) |
| Ferry : | 3,875 miles (6,237 km) |
| Service Ceiling : | 40,900 ft (12,465 m) |
| Rate of Climb : | 5,120 ft/min (26 m/sec) |
| Dimensions : | |
| Length : | 53 ft 4 in (16.26 m) |
| Wingspan : | Unfolded – 68 ft 8 in (20.93 m) |
| Folded – 29 ft 6 in (9.00 m) | |
| Height – 22 ft 9 in (6.93 m) | |
| Weights : | |
| Empty: | 26,581 lb (12,057 kg) |
| Loaded: | 38,193 lb (17,324 kg) |
| Maximum Take-off: | 52,539 lb (23,831 kg) |
| Armament: | 4 x internal and 2 external Hardpoints capable of carrying an assortment of ordnance weighing a maximum of 4,900 lb (2,220 kg) |
| Assortment of Ordnance | |
| 10 x 500 lb (227 kg) Mark 82 bombs | |
| 2 x 1,000 lb 454 kg) Mark 83 bombs | |
| 2 x 2,000 lb (908 kg) Mark 84 bombs | |
| 6 x CBU-100 cluster bombs | |
| 2 x Mark 50 torpedoes | |
| 4 x Mark 46 torpedoes | |
| 6 x mines or depth charges | |
| 2 x B57 nuclear bombs | |
| 2 x AGM-65E/F Maverick missiles | |
| 2 x AGM-84 Harpoon missiles | |
| 1 x AGM-84H/K SLAM-ER missile | |
| The 2 under-wing hardpoints can hold unguided missile pods or the 300 US gal fuel tanks. | |
| Avionics: | AN/APS-116 sea search radar, maximum range 173 miles (278 km) |
| S-3B upgraded to AN/APS-137 Inverse Synthetic Aperture Radar (ISAR) | |
| OR-89 FLIR camera with 3 X zoom | |
| AN/ARS-2 sonobuoy receiver with 13 blade antennae on the airframe for precise buoy location | |
| Up to 60 sonobuoys (59 tactical, 1 Search and Rescue (SAR) | |
| AN/ASQ-81 magnetic anomaly detector (MAD) | |
| AN/ASN-92 INS with Doppler radar navigation and TACAN |
