Air Power Series>1:72 die-cast display model>F-14>HA5220

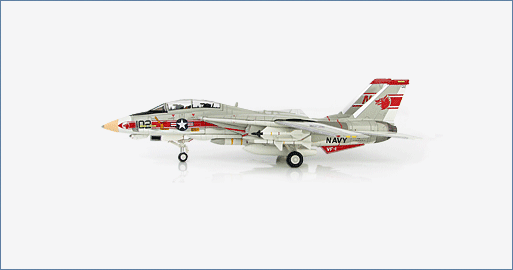

Grumman F-14A Tomcat "Wolfpack" NK102, USS Enterprise, 30th July, 1976
HA5220
General Background
The Grumman F-14 Tomcat is a twin-engine, variable sweep wings capable of supersonic flight. The aircraft is crewed by a Pilot and a Radar Intercept Officer who share the tasks of navigation, target acquisition, ECM and weapons usage. The Tomcat was operated by the United States Navy and the Islamic Republic of Iran Air Force only. The name "Tomcat" is said to come from the call-sign used by Vice Admiral Thomas Connolly which conformed to the USN tradition of giving Grumman aircraft feline names.
The Aircraft
VF-1 “Wolfpack” was established on October 14, 1972 and was the 4th USN squadron to use the designation. On July 1, 1973 VF-1 received the first of its F-14As with their first deployment taking place on the USS Enterprise between September 12, 1974 and May 19, 1975. This marked the first operational cruise for the F-14. Between July 30, 1976 and March 8, 1977 VF-1 once again deployed onboard the Big E. After returning in March 1977 F-14A 158996 was transferred to VF-2 and lost on June 26, 1977.
Specifications :
Role: Carrier-based multi-role strike fighter
First Flight: F-14A 1970, F-14B (F-14A+) 1986, F-14D 1990
Last Production Year: F-14D July 20, 1992
Number All Variants Produced: 710
Crew: 2 (pilot and radar intercept officer)
Dimensions
Length: 62 ft 8 inches
Wingspan (Swept) 38 ft 2.5 inches
Wingspan (Unswept) 64 ft 1.5 inches
Height: 16 ft
Performance
Powerplants: F-14A 2 x P&W TF-30-P414A F-14B 2 x GE F-110-GE-400 F-14D 2 x GE F-110-GE-400
Maximum Thrust: F-14A 34,154 lbs F-14B 56,400 lbs F-14D 56,400 lbs
Maximum Speed: F-14A 1,544 mph (Mach 2.38) F-14B 1,544 mph (Mach 2.38) F-14D 1,544 mph (Mach 2.38)
Ceiling: F-14A 50,000+ ft F-14B 53,000+ ft F-14D 53,000+ ft
Range: F-14A 1,730 nm F-14B 2,050 nm F-14D 2,050 nm
Weights
Empty: F-14A 40,104 pounds F-14B 41,780 pounds F-14D 43,735 pounds
Maximum: F-14A 72,000 pounds F-14B 74,349 pounds F-14D 74,349 pounds
Armament: 1 x MK-61A1 Vulcan 20mm cannon
Maximum Weight: 13,000 lbs. Of Combined Ordnance
Air-Air Missiles
6 AIM-7 Sparrows
4 AIM-9 Sidewinder
6 AIM-54 Phoenix
Air-To-Ground
MK-82 (500 lbs.)
4 MK-83 (1,000 lbs.)
4 MK-84 (2,000 lbs.)
MK-20 cluster bombs
4 GBU-10 LGB
GBU-12 MK-82 LGB
4 GBU-16 MK-83 LGB
4 GBU-24 MK-84 LGB
