Air Power Series>1:72 die-cast display model>F-14>HA5227

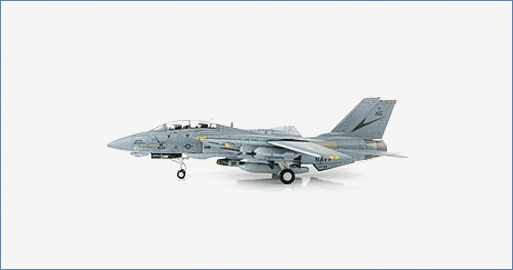

Grumman F-14D Tomcat 164350, VF-2, 2003 "OIF"
HA5227
General Background
The Grumman F-14 Tomcat is a twin-engine, variable sweep wings capable of supersonic flight. The aircraft is crewed by a Pilot and a Radar Intercept Officer who share the tasks of navigation, target acquisition, ECM and weapons usage. The Tomcat was operated by the United States Navy and the Islamic Republic of Iran Air Force only. The name "Tomcat" is said to come from the call-sign used by Vice Admiral Thomas Connolly which conformed to the USN tradition of giving Grumman aircraft feline names.
The Aircraft
VF-2 “Bounty Hunters” joined the USS Constellation CV-64 in June 1994 and continued on it until July 2003 when the squadron was re-designated VFA-21 and re-equipped with the new F/A-18F. In Late 2002 into 2003 VF-2 took part in OIF and OSW and dropped the first Tomcat JDAM. During the two operations they flew 483 sorties delivering 294 LGBs – JDAMs and Mk-82 bombs. F-14D 164350 was delivered February 7, 1992 to VF-11 and then VF-2 in 1997 and finally VF-31. It is presently on display at Joe Davies Heritage Air Park Palmdale, California.
Specifications :
Role: Carrier-based multi-role strike fighter
First Flight: F-14A 1970, F-14B (F-14A+) 1986, F-14D 1990
Last Production Year: F-14D July 20, 1992
Number All Variants Produced: 710
Crew: 2 (pilot and radar intercept officer)
Dimensions
Length: 62 ft 8 inches
Wingspan (Swept) 38 ft 2.5 inches
Wingspan (Unswept) 64 ft 1.5 inches
Height: 16 ft
Performance
Powerplants: F-14A 2 x P&W TF-30-P414A F-14B 2 x GE F-110-GE-400 F-14D 2 x GE F-110-GE-400
Maximum Thrust: F-14A 34,154 lbs F-14B 56,400 lbs F-14D 56,400 lbs
Maximum Speed: F-14A 1,544 mph (Mach 2.38) F-14B 1,544 mph (Mach 2.38) F-14D 1,544 mph (Mach 2.38)
Ceiling: F-14A 50,000+ ft F-14B 53,000+ ft F-14D 53,000+ ft
Range: F-14A 1,730 nm F-14B 2,050 nm F-14D 2,050 nm
Weights
Empty: F-14A 40,104 pounds F-14B 41,780 pounds F-14D 43,735 pounds
Maximum: F-14A 72,000 pounds F-14B 74,349 pounds F-14D 74,349 pounds
Armament: 1 x MK-61A1 Vulcan 20mm cannon
Maximum Weight: 13,000 lbs. Of Combined Ordnance
Air-Air Missiles
6 AIM-7 Sparrows
4 AIM-9 Sidewinder
6 AIM-54 Phoenix
Air-To-Ground
MK-82 (500 lbs.)
4 MK-83 (1,000 lbs.)
4 MK-84 (2,000 lbs.)
MK-20 cluster bombs
4 GBU-10 LGB
GBU-12 MK-82 LGB
4 GBU-16 MK-83 LGB
4 GBU-24 MK-84 LGB
