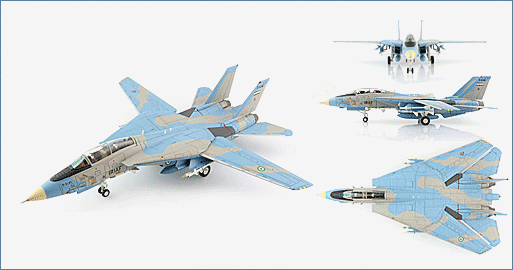

Grumman F-14A Tomcat 3-6041, IRIAF, TFB 8 Khatami, 2003
General Background
The Grumman F-14 Tomcat is a twin-engine, variable sweep wings capable of supersonic flight.
The aircraft is crewed by a Pilot and a Radar Intercept Officer who share the tasks of navigation,
target acquisition, ECM and weapons usage. The Tomcat was operated by the United States
Navy and the Islamic Republic of Iran Air Force only. The name "Tomcat" is said to come from the
call-sign used by Vice Admiral Thomas Connolly which conformed to the USN tradition of giving
Grumman aircraft feline names.
The Aircraft
Since the early 1970s the Soviet Union had been sending MiG-25 over flights of Iran who was unable to stop this using their F-4s. In January 1974 Iran ordered 30 F-14s with another 50 in June 1974. In January 1976 the first two aircraft arrived with 10 more by May 1977 along with Phoenix missiles which put an end to Soviet over flights. F-14A 160339/3-6041 was purchased from the Czech Air Force in 1995 and had the Czech markings painted over and Polish markings added but the camo scheme remained unchanged.
Specifications :
| Role: | Carrier-based multi-role strike fighter |
| First Flight: | F-14A 1970, F-14B (F-14A+) 1986, F-14D 1990 |
| Last Production Year: | F-14D July 20, 1992 |
| Number All Variants Produced: | 710 |
| Crew: | 2 (pilot and radar intercept officer) |
| Dimensions | |
| Length: | 62 ft 8 inches |
| Wingspan (Swept) | 38 ft 2.5 inches |
| Wingspan (Unswept) | 64 ft 1.5 inches |
| Height: | 16 ft |
| Performance | |
| Powerplants: | F-14A 2 x P&W TF-30-P414A F-14B 2 x GE F-110-GE-400 F-14D 2 x GE F-110-GE-400 |
| Maximum Thrust: | F-14A 34,154 lbs F-14B 56,400 lbs F-14D 56,400 lbs |
| Maximum Speed: | F-14A 1,544 mph (Mach 2.38) F-14B 1,544 mph (Mach 2.38) F-14D 1,544 mph (Mach 2.38) |
| Ceiling: | F-14A 50,000+ ft F-14B 53,000+ ft F-14D 53,000+ ft |
| Range: | F-14A 1,730 nm F-14B 2,050 nm F-14D 2,050 nm |
| Weights | |
| Empty: | F-14A 40,104 pounds F-14B 41,780 pounds F-14D 43,735 pounds |
| Maximum: | F-14A 72,000 pounds F-14B 74,349 pounds F-14D 74,349 pounds |
| Armament: | 1 x MK-61A1 Vulcan 20mm cannon |
| Maximum Weight: | 13,000 lbs. Of Combined Ordnance |
| Air-Air Missiles | |
| 6 AIM-7 Sparrows | |
| 4 AIM-9 Sidewinder | |
| 6 AIM-54 Phoenix | |
| Air-To-Ground | |
| MK-82 (500 lbs.) | |
| 4 MK-83 (1,000 lbs.) | |
| 4 MK-84 (2,000 lbs.) | |
| MK-20 cluster bombs | |
| 4 GBU-10 LGB | |
| GBU-12 MK-82 LGB | |
| 4 GBU-16 MK-83 LGB | |
| 4 GBU-24 MK-84 LGB |
