Air Power Series>1:72 die-cast display model>F-14>HA5238

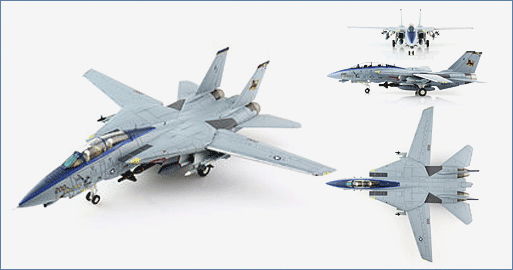

Grumman F-14D Tomcat No 164347, VF-213 Black Lions, 2006 "Final Cruise"
HA5238
General Background
The Grumman F-14 Tomcat is a twin-engine, variable sweep wings capable of supersonic flight. The aircraft is crewed by a Pilot and a Radar Intercept Officer who share the tasks of navigation, target acquisition, ECM and weapons usage. The Tomcat was operated by the United States Navy and the Islamic Republic of Iran Air Force only. The name "Tomcat" is said to come from the call-sign used by Vice Admiral Thomas Connolly which conformed to the USN tradition of giving Grumman aircraft feline names.
The Aircraft
VF-213 "Black Lions" was established in 1955 flying the F2H-3 Banshee and eventually the F-14A in September 1976 and the F-14D in 1997. In September 2005 the USS Theodore Roosevelt "The Big Stick" sailed with VF-213 and several other units to take part in "Operation Iraqi Freedom" and "Operation Enduring Freedom". By mid February 2006 the carrier had entered the Mediterranean on her way home. Returning home in 2006, they began the conversion to the F/A-18F Super Hornet. F-14D 164347 was produced in 1991 and sent to AMARC in 2006.
Specifications :
Role: Carrier-based multi-role strike fighter
First Flight: F-14A 1970, F-14B (F-14A+) 1986, F-14D 1990
Last Production Year: F-14D July 20, 1992
Number All Variants Produced: 710
Crew: 2 (pilot and radar intercept officer)
Dimensions
Length: 62 ft 8 inches
Wingspan (Swept) 38 ft 2.5 inches
Wingspan (Unswept) 64 ft 1.5 inches
Height: 16 ft
Performance
Powerplants: F-14A 2 x P&W TF-30-P414A F-14B 2 x GE F-110-GE-400 F-14D 2 x GE F-110-GE-400
Maximum Thrust: F-14A 34,154 lbs F-14B 56,400 lbs F-14D 56,400 lbs
Maximum Speed: F-14A 1,544 mph (Mach 2.38) F-14B 1,544 mph (Mach 2.38) F-14D 1,544 mph (Mach 2.38)
Ceiling: F-14A 50,000+ ft F-14B 53,000+ ft F-14D 53,000+ ft
Range: F-14A 1,730 nm F-14B 2,050 nm F-14D 2,050 nm
Weights
Empty: F-14A 40,104 pounds F-14B 41,780 pounds F-14D 43,735 pounds
Maximum: F-14A 72,000 pounds F-14B 74,349 pounds F-14D 74,349 pounds
Armament: 1 x MK-61A1 Vulcan 20mm cannon
Maximum Weight: 13,000 lbs. Of Combined Ordnance
Air-Air Missiles
6 AIM-7 Sparrows
4 AIM-9 Sidewinder
6 AIM-54 Phoenix
Air-To-Ground
MK-82 (500 lbs.)
4 MK-83 (1,000 lbs.)
4 MK-84 (2,000 lbs.)
MK-20 cluster bombs
4 GBU-10 LGB
GBU-12 MK-82 LGB
4 GBU-16 MK-83 LGB
4 GBU-24 MK-84 LGB
