Air Power Series>1:72 die-cast display model>F-14>HA5239

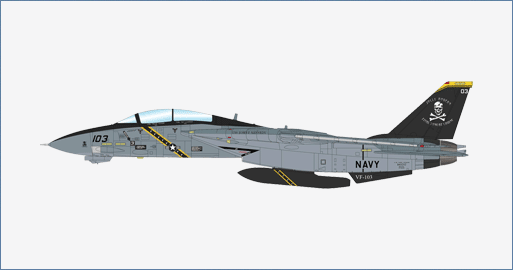

Grumman F-14B Tomcat 163217, VF-103, NAS Oceana, June 2005
General Background
The Grumman F-14 Tomcat is a twin-engine, variable sweep wings capable of supersonic flight.
The aircraft is crewed by a Pilot and a Radar Intercept Officer who share the tasks of navigation,
target acquisition, ECM and weapons usage. The Tomcat was operated by the United States
Navy and the Islamic Republic of Iran Air Force only. The name "Tomcat" is said to come from the
call-sign used by Vice Admiral Thomas Connolly which conformed to the USN tradition of giving
Grumman aircraft feline names.
The Aircraft
In February 1999 Grumman F-14B Tomcat 163217 joined VF-103 "Jolly Rogers" but in April 2001 it moved to VF-102 until June 2003 when it returned to VF-103. in 2004 this aircraft was the first VF-103 F-14 to receive the new Sparrow Hawk HUD. In 2005 163217 was selected to have the special paint scheme celebrating 60 years of F-14s with VF-103 "Jolly Rogers". On January 25, 2005 this aircraft was the last F-14 to leave Oceana with the destination of AMARC where it stayed until 2007 when it was scrapped.
Specifications :
| Role: | Carrier-based multi-role strike fighter |
| First Flight: | F-14A 1970, F-14B (F-14A+) 1986, F-14D 1990 |
| Last Production Year: | F-14D July 20, 1992 |
| Number All Variants Produced: | 710 |
| Crew: | 2 (pilot and radar intercept officer) |
| Dimensions | |
| Length: | 62 ft 8 inches |
| Wingspan (Swept) | 38 ft 2.5 inches |
| Wingspan (Unswept) | 64 ft 1.5 inches |
| Height: | 16 ft |
| Performance | |
| Powerplants: | F-14A 2 x P&W TF-30-P414A F-14B 2 x GE F-110-GE-400 F-14D 2 x GE F-110-GE-400 |
| Maximum Thrust: | F-14A 34,154 lbs F-14B 56,400 lbs F-14D 56,400 lbs |
| Maximum Speed: | F-14A 1,544 mph (Mach 2.38) F-14B 1,544 mph (Mach 2.38) F-14D 1,544 mph (Mach 2.38) |
| Ceiling: | F-14A 50,000+ ft F-14B 53,000+ ft F-14D 53,000+ ft |
| Range: | F-14A 1,730 nm F-14B 2,050 nm F-14D 2,050 nm |
| Weights | |
| Empty: | F-14A 40,104 pounds F-14B 41,780 pounds F-14D 43,735 pounds |
| Maximum: | F-14A 72,000 pounds F-14B 74,349 pounds F-14D 74,349 pounds |
| Armament: | 1 x MK-61A1 Vulcan 20mm cannon |
| Maximum Weight: | 13,000 lbs. Of Combined Ordnance |
| Air-Air Missiles | |
| 6 AIM-7 Sparrows | |
| 4 AIM-9 Sidewinder | |
| 6 AIM-54 Phoenix | |
| Air-To-Ground | |
| MK-82 (500 lbs.) | |
| 4 MK-83 (1,000 lbs.) | |
| 4 MK-84 (2,000 lbs.) | |
| MK-20 cluster bombs | |
| 4 GBU-10 LGB | |
| GBU-12 MK-82 LGB | |
| 4 GBU-16 MK-83 LGB | |
| 4 GBU-24 MK-84 LGB |
