Air Power Series>1:72 die-cast display model>P-40>HA5502

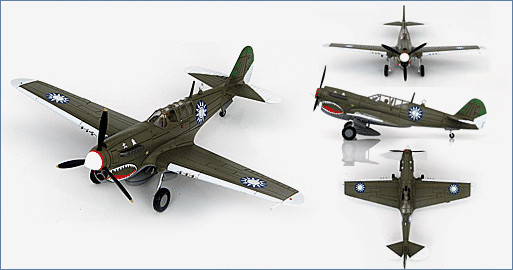

Curtiss P-40N flown by Chiao Wu O, 29th FS/5th FG, Chinese Air Force, China 1944
HA5502
General Background
The Curtiss P-40 Warhawk first flew in 1938 as a modification of the Curtiss P-36 Hawk. Warhawk was the official U.S. designation while the name Tomahawk was used by the British Commonwealth and Soviet forces for the P-40B and C and Kittyhawk for P-40Ds and later variants. The P-40 was first used by British squadrons in North Africa and the Middle East in 1941. The P-40 lacked a two-speed supercharger making them inferior to German aircraft but was an adequate fighter in low altitude combat zones. Almost 12,000 P-40s were produced.
The Aircraft
AKA known as Fred Wu-O Chiao he joined the Chinese Air Force in 1936 and was selected by Claire Chennault to complete flight training. In 1940 he was flight leader of 32nd Squadron, 3rd FG later transferring to the 29th Squadron, 5th FG with the Chinese-American Composite Wing in July 1943. He destroyed four airborne Oscars and numerous ground aircraft. On January 20, 1944 he was shot down and spent the rest of WWII recuperating. In 1966 he retired from the Republic of China Air Force as a Major General.
Specifications :

Crew:

1.
Powerplant: 1 x Allison V-1710-81 / 1,200 hp (895 kW)later series P-40N-40V-1710-115 / 1,360 hp (1,015 kW)
Maximum speed: 378 mph @ 16,400 ft / (608 kph) (5,000 m)
Crusing speed: 280 mph (455 kph)
Rate of climb: 2,240 f/min (11.4 m/sec)
Ceiling: 31,000 ft (9.450 m)
Range: 745 mi (1,200 km)

Wingspan:

37 ft 4 in (11.37 m)
Length: 33 ft 4 in (10.16 m)
Height: 12 ft 4 in (3.76 m)
Empty weight: 6,405 lb (2,905 kg)
Maximum take-off weight: 8,860 lb (4,020 kg)
Armament: 4 x .50 cal (12.7 mm) Browning M2 machine guns and up to 1,500 lb (680 kg) of bombs on 3 hardpoints
