Air Power Series>1:72 die-cast display model>F-117>HA5807

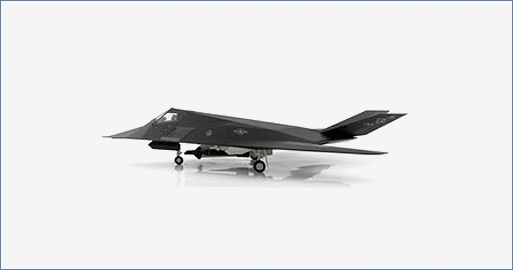

Lockheed F-117A Nighthawk 85-831 (with Skunkworks artwork on the underside)
General Background
n the 1970’s Soviet air defense systems improved and the U.S. realized they had to develop
aircraft to counter this. Lockheed Skunk Works was tasked with the job and two aircraft were built
under the code name “Have Blue” that proved stealth aircraft could be produced. As a result the
F-117 Nighthawk was developed and first flew in 1981 with the first production F-117 80-10785
making its maiden flight on April 20, 1982 but it wasn’t until 1988 that the Pentagon confirmed its
existence.
The Aircraft
The 412th Test Wing / 410th Flight Test Squadron at Edwards AFB were the last units to operate
the F-117. F-117A first flew in 1987 and on December 1, 1988 was the first F-117 to test the new
OCIP II upgrade. Between November 27 and December 6, 1990 #831 wore a painting of a skunk
on its belly as a tribute to the Skunk Works. On December 6, 1990 #831 was flown to Area 51 to
celebrate the retirement of the company’s president Ben Rich. The painting was removed
immediately after the event.
Specifications :
| Role: | Fighter/Attack |
| First Deployed : | 1982 |
| Retired : | April 22, 2008 |
| Full Scale Development Aircraft : | 5 |
| Production Aircraft : | 59 |
| Crew : | 1 |
| Crew : | 1 |
| Performance | |
| Power Plant : | 2 X General Electric F404-F1D2 Turbofan Engine Each Producing 10,600 lbf (48.0 kN) |
| Dimensions | |
| Length: | 65 ft 11 in (20.09 m) |
| Wingspan: | 43 ft 4 in (13.20 m) |
| Height: | 12 ft 9 in (3.78 m) |
| Weight | |
| Empty: | 29,500 lbs (13,380 kg) |
| Loaded: | 52,500 lbs (23,800 kg) |
| Speed | |
| Ceiling: | 45,000 ft (13,716 m) |
| Maximum: | 617 mph (Mach .092 / 993 km/h) |
| Range: | 930 nm (1,720 km / Unlimited with Air Refuel) |
| Armament: | 2 X Internal Weapons Bays, 1 X Hardpoint Per Bay, Total 2 Weapons Capacity |
| Laser Guided Bombs: | GBU-10 Paveway II 2,000 lb Bomb |
| GBU-12 Paveway II 500 lb Bomb | |
| GBU-16 Paveway II 1,000 Bomb | |
| GBU-27 Have Void (Modified GBU-24 Modified For The F-117) 2000lb | |
| GPS Guided Bombs: | GBU-29 JDAM (Joint Direct Attack Munition) |
| GBU-30 JDAM (Joint Direct Attack Munition) | |
| GBU-31 JDAM (Joint Direct Attack Munition) INS/GPS Guided Munitions | |
| GBU-32 JDAM (Joint Direct Attack Munition) | |
| (WCMD) Wind Corrected Munition Dispenser | |
| Missiles: | AGM-65 Maverick (Air-to-surface Guided Missile) |
| AGM-88 HARM (High-speed Anti-radiation Missile) | |
| AGM-137 TSSAM (Tri-Service Standoff Attack Missile) | |
| AGM-154 JSOW (Joint Standoff Weapon) | |
| AGM-154 JASSM (Joint Air to Surface Standoff Missile) |
