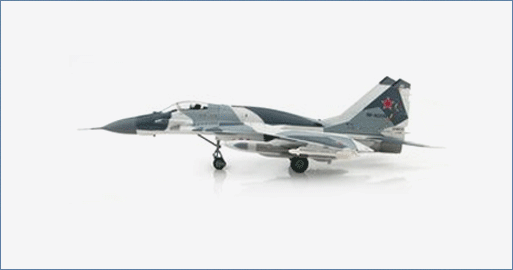

Air Power Series>1:72 die-cast display model>Mig-29>HA6550
MIG-29 SMT (9.19) Red 20, Russian Air Force
General Background
The MiG-29 is a twin-engine supersonic fourth generation air superiority jet fighter developed in
the Soviet Union in the 1970’s. The aircraft entered service with the Soviet Air Force in 1983 and
still is in use with them as well as equipping over twenty four other countries over the years. The
NATO designation for the MiG-29 is Fulcrum and it was designed to counter the American F-16
and F-18. The MiG-29 was first seen in the West in 1986. The MiG-29 (9-13) is designated the
Fulcrum C.
The Aircraft
Russia intends to upgrade first generation MiG-29 (9.12 to 9.13) to a new standard; the MiG-29
SMT (9.19). Up to 150 aircraft will have a larger fuselage spine with additional fuel tanks. The
aircraft will have better HOTAS (hands on throttle-and-stick), two color LCD MFDs and two small
monochrome LCDs; a new radar system; improved engines and an increased weapons
capability. In 2012 Red 20 RF-92233 c/n 2960734100 was located at Lipetsk Air Base assigned
to the 4th Center of Combat Application and Conversion of Frontline Aviation.
Specifications :
| Manufacturer: | Mikoyan Gurevich |
| Role: | Supersonic Multi-Role Jet Fighter |
| Entered Service: | 1983 |
| Production All Variants: | 1,600 + |
| Crew: | 1 Pilot |
| Dimensions | |
| Length: | 17.32 m (56 ft 10 in) |
| Wingspan: | 11.36 m (37 ft 3 in) |
| Height: | 4.73 m (15 ft 6 in) |
| Weight: | |
| Empty: | 11,000 kg (24,250 lb) |
| Loaded: | 14,900 kg (33,730 lb) |
| Maximum Takeoff : | 18,000 kg (44,100 lb) |
| Performance | |
| Power Plant: | 2 X Klimov RD-33 Afterburning Turbofans Each Producing 81.59 kN (18,342 lbf) |
| Rate of Climb: | 330 m/s (65,000 ft/min) |
| Maximum speed: | @ Mach 2.25 (2,400 km/h) (1,490 mph) |
| Service Ceiling: | 18,000 m (59,100 ft) |
| Range: | 1,430 km (888 mi) (772 nmi) With Maximum Internal Fuel |
| Ferry Range: | 2,100 km ((1,300 mi) (1,130 nmi ) With 1 Drop Tank |
| Armament: | |
| Gun: | 1 X 30 mm Gryazev-Shipunov GSh-30-1 Auto-Cannon W/150 Rounds |
| Hardpoints: | 7 X (6 Under-Wing, 1 Fuselage Capable Of Carrying Up To 4,000 kg (8,800 lb) Of |
| Various Weapons: | |
| Rockets: | S-5 |
| S-8 | |
| S-24 | |
| Missiles: | 2 X R-27R/ER/T/ET/P Air-To-Air |
| 4 X R-60 AAMs | |
| 4 X R-73 AAMs | |
| Bombs | 6 X 665 kg (1,466 lb) Bombs |
