Air Power Series>1:72 die-cast display model>Tornado>HA6701

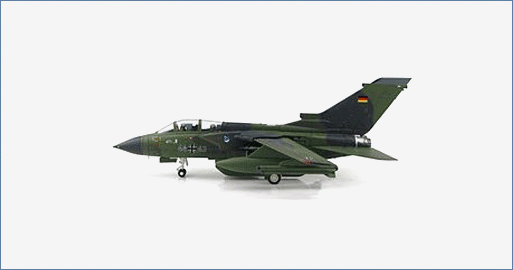

Tornado IDS 44+43, JaBoG 34 Allgau, Luftwaffe, 1980s
HA6701
General Background
The Panavia Tornado was a joint effort between the UK, West Germany and Italy to produce a two-seat, dual-engine aircraft with variable-sweep wings. The Tornado took its maiden flight on August 14, 1974 with the first aircraft being delivered to the German Air Force on July 27, 1979. There are three main variants of the Tornado, the IDS (interdictor/strike), ECR (electronic combat/reconnaissance) and ADV (air defense variant) interceptor. By the end of production in 1998 there had been 992 aircraft of all versions built of which 745 were IDS variants.
The Aircraft
Over the years Bundeswehr (German Federal Air Force) Panavia Tornado 44+43 c/n 365/GS100/4143 served with JaboG 32, JaboG 34, JaboG 31, AG 51. JaboG 32 was the third unit to receive the Tornado IDS with JaboG 34 located at Memmingen becoming operational with their Tornado in June 1988. By the time JaboG 34 was disbanded in 2003 they had accumulated 450,000 flight hours. In 2007 Tornado 44+43 was retired and preserved at Birkenfeld. The aircraft is finished in a Norm83C camo scheme.
Specifications :
Country of origin: Italy, UK, West Germany
Service entry date: 1979
Crew: 2
Dimensions
Length: 17.72 m (58.1 ft)
Wingspan: 13.92 m (45.7 ft) expanded 8.6m swept (28.2 ft)
Height: 5.95m (19.5 ft)
Weight:
Empty: 13.8 t (30,423 lb)
Maximum Takeoff : 27.9 t (61,508.9 lb)
Performance
Power Plant: 2 X Turbo-Union RB.199 Mk. 103 turbofans Producing dry with afterburners 2 X 38.48 / 71.50 kN
Maximum speed: 2,236 km/h (1,389 mph)
Range: 1,390 km (863.7 miles)
Ferry range with drop tanks: 3,900 (2,423.3) – 4,300 km (2,671.9 miles)
Service Ceiling: 15.2 km (49,868.77 ft)
Armament: Cannon – 2 X 27 mm IWKA-Mauser
Storm Shadow air-launched cruise missiles
Brimstone anti-tank guided missiles
454 kg free-fall bombs
CPU-123/B Paveway II
GBU-28 Paveway III laser-guided bombs
