Air Power Series>1:72 die-cast display model>Tornado>HA6702

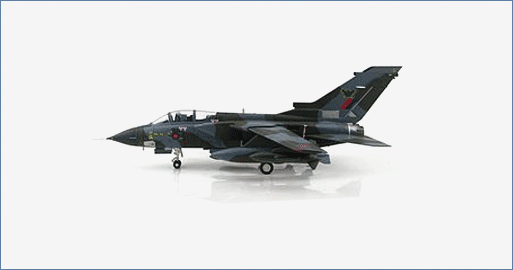

Tornado GR.1 ZA 592"G", No. 9 Sqn., RAF Honington, 1983
HA6702
General Background
The Panavia Tornado was a joint effort between the UK, West Germany and Italy to produce a two-seat, dual-engine aircraft with variable-sweep wings. The Tornado took its maiden flight on August 14, 1974 with the first aircraft being delivered to the German Air Force on July 27, 1979. There are three main variants of the Tornado, the IDS (interdictor/strike), ECR (electronic combat/reconnaissance) and ADV (air defense variant) interceptor. By the end of production in 1998 there had been 992 aircraft of all versions built of which 745 were IDS variants.
The Aircraft
No. IX Squadron was formed in December 1914 to spot for artillery and reconnaissance and later became a specialist bomber unit. The IX has flown 10 different types of bombers including the Lancaster they used to help sink the “Tirpitz”. In 1982 IX moved to Honington and became the RAF’s first operational Tornado Squadron. Panavia Tornado GR1 BS035/105 ZA592 was first flown on January 11, 1982 and delivered to the RAF on February 19, 1982. The aircraft was later upgraded to a GR4 and scrapped on February 24, 2017.
Specifications :
Country of origin: Italy, UK, West Germany
Service entry date: 1979
Crew: 2
Dimensions
Length: 17.72 m (58.1 ft)
Wingspan: 13.92 m (45.7 ft) expanded 8.6m swept (28.2 ft)
Height: 5.95m (19.5 ft)
Weight:
Empty: 13.8 t (30,423 lb)
Maximum Takeoff : 27.9 t (61,508.9 lb)
Performance
Power Plant: 2 X Turbo-Union RB.199 Mk. 103 turbofans Producing dry with afterburners 2 X 38.48 / 71.50 kN
Maximum speed: 2,236 km/h (1,389 mph)
Range: 1,390 km (863.7 miles)
Ferry range with drop tanks: 3,900 (2,423.3) – 4,300 km (2,671.9 miles)
Service Ceiling: 15.2 km (49,868.77 ft)
Armament: Cannon – 2 X 27 mm IWKA-Mauser
Storm Shadow air-launched cruise missiles
Brimstone anti-tank guided missiles
454 kg free-fall bombs
CPU-123/B Paveway II
GBU-28 Paveway III laser-guided bombs
