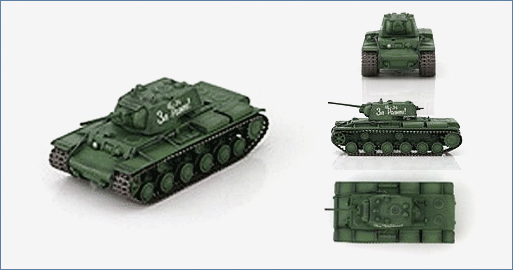

KV-1 Model 1941 unknown unit, Stalingrad area, 1942
HG3014
General Background
The KV-1 (M1941) early models came with a welded turret and eventually a cast turret with rounded corners. Both models came with 90mm thick hulls and extra 40mm plates bolted to the front and sides. This gave a total of up to 130mm front hull and the turret now was 92 - 110mm thick. All this extra armor increased the weight by 2 tons and ended up costing them speed and agility. The M1941 model now had more machine guns and a new main cannon.
Specifications :
Crew: 5
Length: 6.75 m / 22.15 ft
Width: 3.32 m / 10.9 ft
Height: 2.71 m / 8.9 ft
Weight: 47 - 50 tonnes
Armour: 90 mm / 3.54 in
Main Armament: 76.2 mm (3 in) F-34 gun with 111 rounds
Secondary Armament: 3 x 7.62 mm DT Machine Guns with 3024 rounds. Located coaxial, bow, turret rear
Powerplant: 12-cylinder diesel model V-2 600 hp
Suspension: Torsion bar
Road Speed: 35km/h / 21.75 mph
Power – Weight Ration: 13 hp/tonne
Range: 335 km / 208 mi
