Ground Power Series>1:72 die-cast display model>Panzer II>HG4604

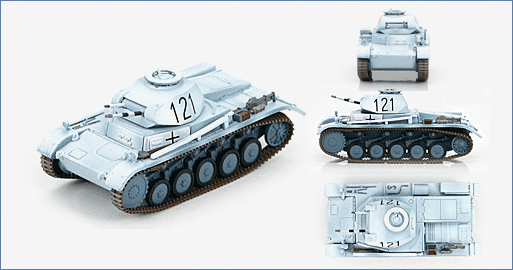

German Panzer II Ausf. C Unknown Unit, Caucasus 1941 (winter scheme)
General Background
In 1934 there were delays in design and production for what would be the Panzer III and IV tanks. The temporary solution was the Panzer II or Panzerkampfwagen II (PzKpfw). It was a larger version of the Panzer I but with a 20 mm anti-tank gun. The Panzer II was in production from 1937 to 1943 and remained in service until 1945. The Ausf. C was the most produced variant of the Panzer II. The Panzer II chassis was used to produce several other types of tanks.
Specifications :
| In Service: | 1936 to 1945 |
| Type: | Light Tank |
| Manufactured by: | Alkett, Daimler-Benz, FAMO, Henschel, M.A.N, MIAG, Wegmann |
| Crew: | 3 x (Commander/Gunner, Driver, Loader) |
| Power Plant: | 1 x Maybach HL62TR, straight 6 cylinder, liquid cooled, gasoline engine, produces 140 hp @2,600 rpm |
| Fuel: | 170 liters |
| Performance: | |
| Gears Box: | 6 x forward, 1 x reverse |
| Road Speed: | 40 km/h |
| Range on Road: | 200 km |
| Dimensions: | |
| Length: | 4.81 m |
| Width: | 2.22 m |
| Height: | 1.99 m |
| Weight: | 8,900 kg |
| Armament: | 1 x 2 cm KwK 30 L/55 main gun – 180 rounds |
| 1 x 7.92 mm MG34 Machine Gun – 2,250 rounds | |
| Armor: | 10 mm to 14.5 mm |
