Ground Power Series>1:72 die-cast display model>Sd. Kfz. 11>HG5101

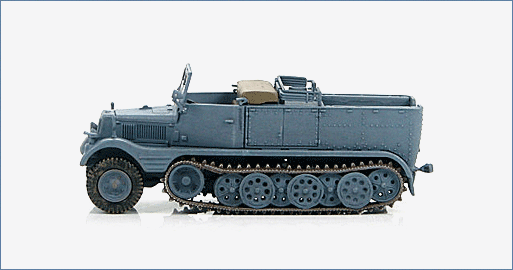

Sd. Kfz. 11 German 3 ton Half-Track Unit Unknown, Poland 1939 "WH-133669"
General Background
Borgward was tasked to design a 3 ton towing vehicle. The prototype was ready in 1933 but
it only had a 72 HP engine and four road-wheels per side. The second prototype wasn't any
better so in 1938 the project was given to Hanomag. The company added two more road-
wheels per side, changed the transmission and gave it a 100 HP engine. The demand was
so great that 5 more companies were added to the production of the Sd.Kfz.11. Between
1937 and 1945 25,000 vehicles were produced in 5 variants.
Specifications :
| Designed by: | Hanomag |
| Manufactured By: | Hanomag, Adlerwerke, Horch, Skoda, Borgward |
| Production Dates: | 1938-1945 |
| Number Produced: | 25,000 |
| Number of Variants: | 5 |
| Crew : | 2 + 6 passengers |
| Weight: | 7,200 kg (16,000 lb) |
| Dimensions: | |
| Length: | 5.55 m (18.2 ft) |
| Width: | 2 m (6.6 ft) |
| Height: | 2.15 m (7.1 ft) |
| Ground Clearance: | 32 cm (13 in) |
| Performance: | |
| Engine: | Maybach 6-cylinder, water-cooled HL42 TRKM petrol 100 HP |
| Transmission: | Hanomag U 50, 4 + 1 speed |
| Fuel Capacity : | 110 litres (29 U.S. gallons) |
| Maximum Payload: | 1,800 kg (4,000 lb) |
| Range: | |
| On Road: | 240 km (150 mi) |
| Off Road: | 140 km (87 mi) |
| Speed On Road: | 52.5 km/h (32.6 mph) |
