Ground Power Series>1:72 die-cast display model>M36>HG5404

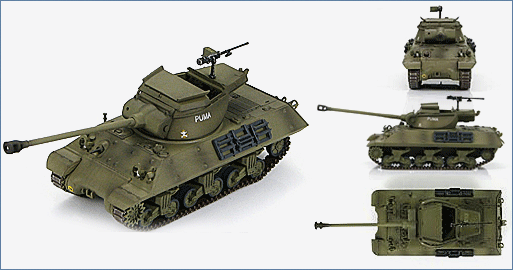

M36 Jackson Tank Destroyer Regiment Blinde Colonial Extreme Orient (RBCEO), Tonkin, French Indochina, 1953
General Background
The M36 Jackson GMC (Gun Motor Carriage) was a tank destroyer developed by first using the standard M10 chassis with a new open-top turret capable of handling a larger 90 MM M3 gun. The open-top reduces weight and allows for better observation but like the M10 leaves the crew exposed to enemy fire. To offset the weight of the 90 mm gun a bustle counterweight was added to the turret rear and was capable of holding eleven rounds of ammunition. Over 1,700 M36s were produced in 3 variants.
Specifications :
| 3 Variants: | M36, Jackson |
| M36B1, Jackson | |
| M36B2, Jackson | |
| Manufacturers: | |
| M36: | Fisher Tank Arsenal, Ford Motor Co., Massey Harris Co., American Locomotive Co., Montreal Locomotive Works |
| M36B1 and M36B2: | American Locomotive Co., Montreal Locomotive Works |
| Role and Chassis Used: | M36 - Tank Destroyer (based on M10A1 GMC) |
| M36B1 - Tank Destroyer (based on M4A3(75)W Sherman) | |
| M36B2 - Tank Destroyer (based on M10 GMC) | |
| Production: | M36 – 1,413 (April 1944 – July 1945) |
| M36B1 - 187 (October 1944 – December 1944) | |
| M36B2 - 724 (April 1945 – May 1945) | |
| Crew - All 3 variants: | 5 |
| Commander - Turret - Rear-right corner
Gunner - Turret - Front-right corner Loader - Turret - Rear-left corner Driver - Hull - Front-right corner Assistant driver - Hull - Front-left corner |
|
| Weights: | M36 - Combat 63,930 lbs (29,000 kg)
M36B1 - Combat 68,340 lbs (31,000 kg) M36B2 - Combat 64,150 lbs (29,100 kg) |
| Dimensions: | M36 - Length without guns 19.59 ft (5.97 m))
M36B1 - Length without gun & with sand shields 20.67 ft (6.30 m) M36B2 - Length without guns 19.59 ft (5.97 m) |
| M36 - Gun overhang 4.89 ft (1.49 m)
M36B1 - Gun overhang without muzzle brake 3.84 ft (1.17 m) M36B2 - Gun overhang 4.89 ft (1.49 m) |
|
| M36 - Length with gun 24.48 ft (7.46 m)
M36B1 - Length with gun 24.51 ft (7.47 m) M36B2 - Length with gun 24.48 ft (7.46 m) |
|
| M36 - Width 10.01 ft (3.05m)
M36B1 - Width with sand shields 8.76 ft (2.67 m) M36B2 - Width 10.01 ft (3.05m) |
|
| All 3 variants: | Height to top of AA Machine-Gun 3.28 m |
| Armament: (All 3 variants) | 90 mm Main Gun M3, M4 mount in turret with 47 rounds (11 ready)
.50cal (12.7 mm) M2HB Machine-Gun, Mount: Flexible in turret AA mount with 1,000 rounds |
| M36B1 also has | 1 - .30cal (7.62 mm) M1919A4 Machine-Gun |
| Ball mount on the front upper armor plate with 1,000 rounds | |
| All 3 variants also carry | 5 - .30cal Carbines M1 with 450 rounds
12 - grenades 4 - smoke pots |
| Powerplant: | M36 and M36B1 |
| 1 - Ford GAA, V8 cyl., 18.0L of displacement, 450-500 hp @ 2,600 rpm
Fuel - Gasoline (727 L) Transmission - Synchromesh, 5 forward speeds & 1 reverse speed |
|
| M36B2 | |
| 2 - General Motors 6046, 12 cyl. (6/engine), 2 cycles, twin in-line, 13.9 L of displacement, 375-410 hp @ 2,100-2,900 rpm
Fuel - Diesel (625L) Transmission - Synchromesh, 5 forward speeds & 1 reverse speed |
|
| Performance: | M36 and M36B1 |
| Maximum Speed on road – 26 mph (42 km/h)
Range on road – 154.7 miles (249 km) |
|
| M36B2 | |
| Maximum Speed on road – 24.9 mph – 29.8 mph (40-48 km/h)
Range on road – 200 miles (322 km) |
